DGA16V2
Axial-rotary union DGA-V2

Product info

• Specifications

  DN:	22
  Size:	16
  Inch:	1
  working pressure [bar]:	350

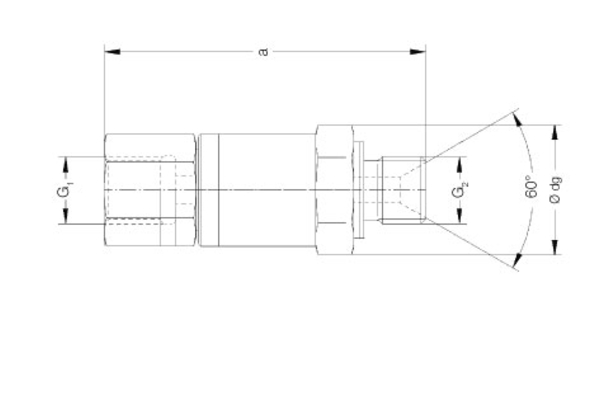

  Thread + standard:	BSP internal thread to DIN 3852 T2 / BSP external thread to DIN 3852 T1 with 60 ° sealing cone (WD)
  Thread [G1]:	G 1
  Thread [G2]:	G 1
  L [mm]:	89,5
  Free passage [cm²]:	2,01
  Diameter [mm]:	41
  Bearing:	Ball Bearing
  Material Casing:	machining steel (9SMn28K)
  Material axle:	chemically nickel plated
  Material sealing:	FKM/PTFE
  Media:	oil, water, air
  Note:	We recommend to filter the medium constantly to an impurity of about 15- 20 µm.  Please contact us for alternative threads or materials.
  Rounds per minute [U/min]:	Swivel & very slow rotation
  Surface:	nickel-plated
  Temperature range [°C]:	-20 °C / +120 °C (80 °C)
