Product info
-
Specifications

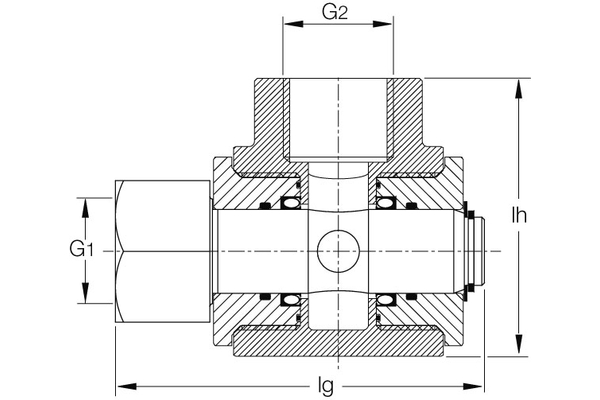

DN: 20 Size: 12 Inch: 3/4 working pressure [bar]: mind. 10 - max. 350 Thread + standard: BSP internal thread for threaded studs DIN 3852-2 / BSP internal thread for threaded studs DIN 3852-2 Thread [G1]: G 3/4 Thread [G2]: G 3/4 L [mm]: 92 Free passage [cm²]: 2,01 H [mm]: 65 Bearing: plain bearing MS58) Material Casing: machining steel (9SMn28K) Material axle: nickel Material sealing: PTFE/Viton(R) Media: oil, water, air Note: We recommend to filter the medium constantly to an impurity of about 15- 20 µm. Please contact us for alternative threads or materials. Rounds per minute [U/min]: Swivel & very slow rotation Surface: nickel-plated Temperature range [°C]: -10 °C / +100 °C
