DG2NI32-W
Angle-rotary union DG2NI-W

Product info

• Technical data

  DN:	50
  Size:	32
  Inch:	2
  working pressure [bar]:	mind. 10 - max. 350
  Thread + standard:	BSP internal thread for threaded studs DIN 3852-2 / BSP internal thread for threaded studs DIN 3852-2

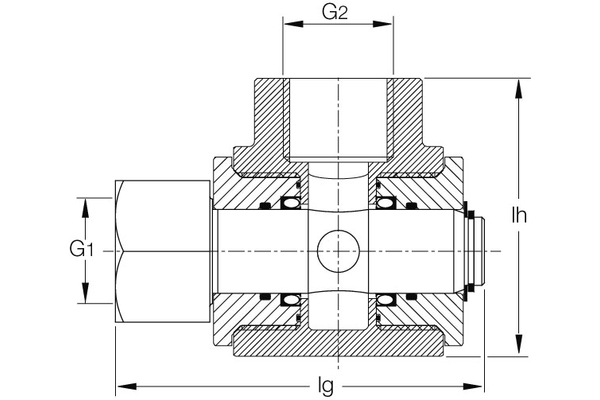

  Thread [G1]:	G 2
  Thread [G2]:	G 2
  L [mm]:	137
  Free passage [cm²]:	10,18
  H [mm]:	107
  Bearing:	plain bearing MS58)
  Material Casing:	machining steel (9SMn28K)
  Material axle:	nickel
  Material sealing:	PTFE/Viton(R)
  Media:	oil, water, air
  Note:	We recommend to filter the medium constantly to an impurity of about 15- 20 µm.  Please contact us for alternative threads or materials.
  Rounds per minute [U/min]:	Swivel & very slow rotation
  Surface:	nickel-plated
  Temperature range [°C]:	-10 °C / +100 °C
