KHN-G1I-25
Low pressure ball valve

Product info

• Specifications

  DN:	25
  working pressure [bar]:	40
  Thread + standard:	Whitworth-Pipe thread (BSP), DIN EN ISO 228-1
  Thread [GA]:	1"

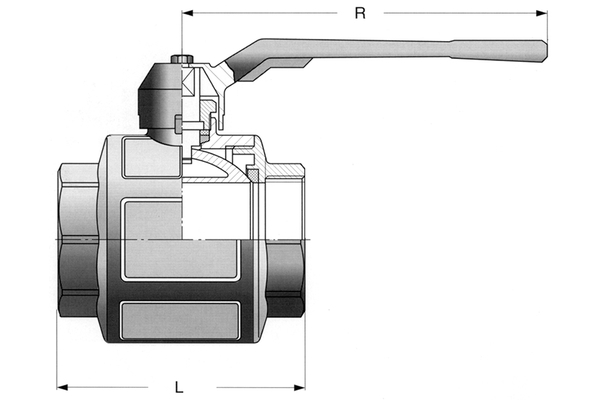

  L [mm]:	90
  Lever length [R] [mm]:	120
  Material Casing:	brass, galvanised
  Material switching ball sealing:	PTFE
  Material switching shaft:	brass
  Material switching shaft sealing:	PTFE
  Product title short:	2-way ball valves
