KHN-G2I-50
Low pressure ball valve

Product info

• Technical data

  DN:	50
  working pressure [bar]:	30
  Thread + standard:	Whitworth-Pipe thread (BSP), DIN EN ISO 228-1
  Thread [GA]:	2"

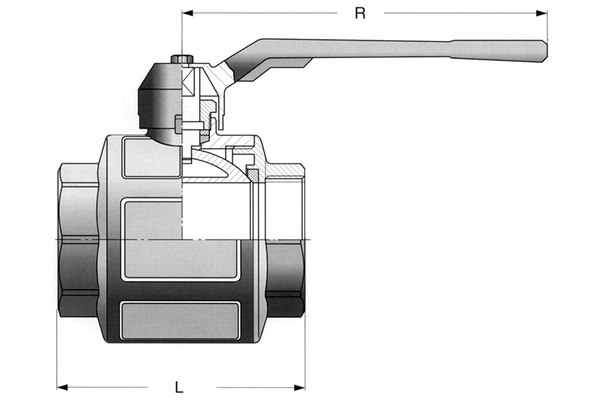

  L [mm]:	135
  Lever length [R] [mm]:	158
  Material Casing:	brass, galvanised
  Material switching ball sealing:	PTFE
  Material switching shaft:	brass
  Material switching shaft sealing:	PTFE
  Product title short:	2-way ball valves
