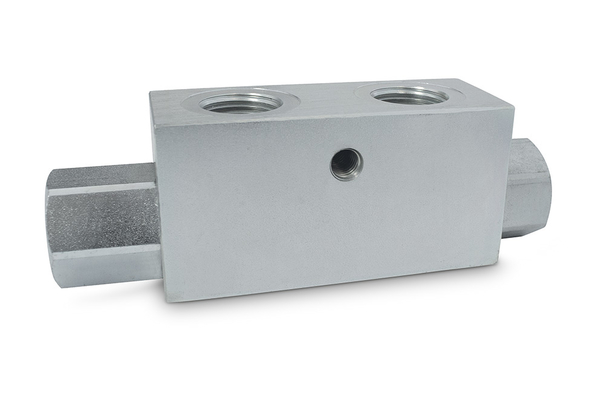

Single pilot operated check valve - RSV-EW

Similar image
Similar image
Similar image

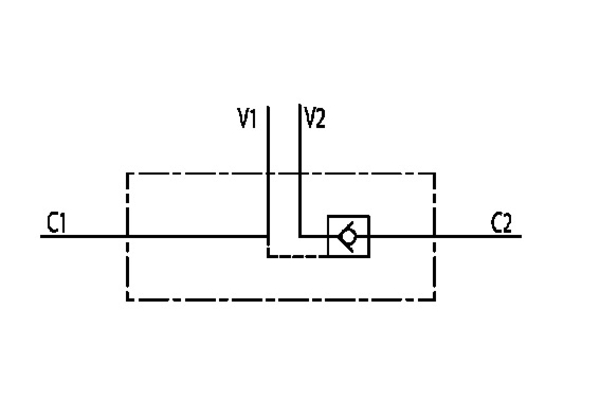

Pilot check valves are used to block the cylinder in both directions. Flow is free in one direction and blocked in the reverse direction until pilot pressure is applied.

To accessories

Detail

Art. No.
RSV-EW-1/4-L4
%
SALE
RSV-EW-3/8-L4
%
SALE
RSV-EW-1/2-L4
%
SALE
RSV-EW-3/8
%
SALE
RSV-EW-1/2
%
SALE
RSV-EW-3/4
%
SALE
DN
6
working pressure [bar]
350
350
350
350
350
350
Thread + standard
BSP
BSP
BSP
BSP
BSP
BSP
L1 [mm]
113
Thread [G1]
1/4"
3/8"
1/2"
3/8"
1/2"
3/4"
Thread [G2]
1/4"
3/8"
1/2"
3/8"
1/2"
3/4"
Fastening thread
1/4" L
3/8" L
1/2" L
3/8"
1/2"
3/4"
Weight [kg]
0,612
0,706
0,94
1,130
1,214
1,792
L1 [mm]
106,5
120
133
148
134
182
max flow [ltr / min]
20
35
50
45
70
100
Opening pressure [bar]
4
3
6
8
3,5
2
H [mm]
40
40
45
45
60
60
pilot ratio
1:5,5
1:5,5
1:5
1:5
1:4
1:4
V1-V2 C1-C2 [GAS - MET]
G 1/4" L
G 3/8" L
G 1/2" L
G 3/8"
G 1/2"
G 3/4"
L [mm]
64
80
90
90
80
100
S [mm]
30
30
35
35
35
40
Quantity
