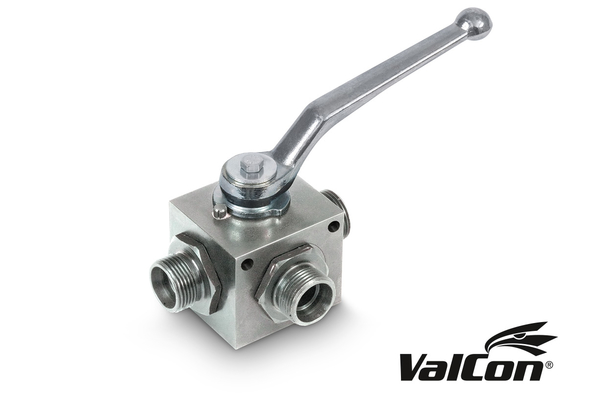

Valcon® directional ball valve (metric, heavy series)

Similar image
Similar image
Similar image

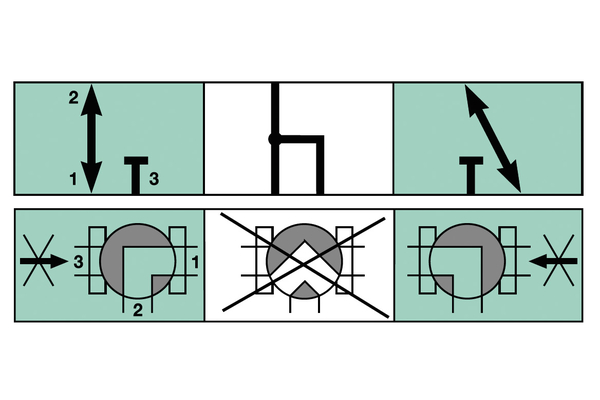

3/2-way version

To accessories

Detail

Art. No.
VC-KHU3-16S-12-L
%
SALE
VC-KHU3-20S-16-L
%
SALE
DN
12
16
working pressure [bar]
315
315
Thread + standard
solderless fittings, DIN 2353, heavy series, ISO 8434-1
solderless fittings, DIN 2353, heavy series, ISO 8434-1
Thread [GA]
M24x1,5
M30x2,0
Pipe Ø R [mm]
16S
20S

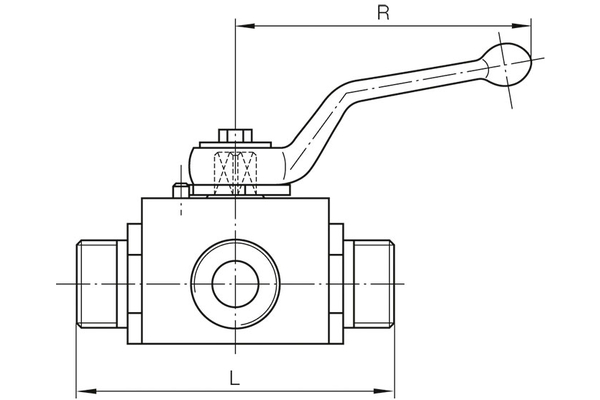

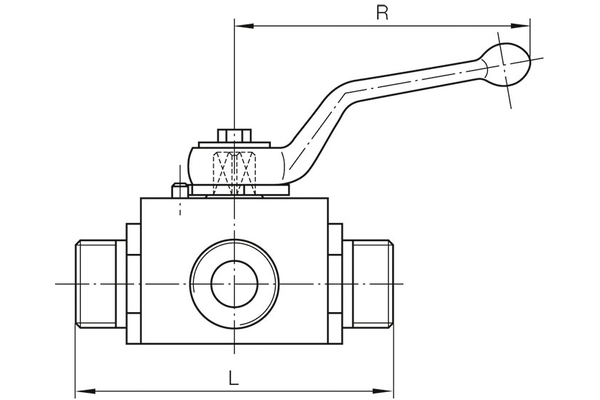

L [mm]
86,0
90,0
Lever length [R] [mm]
108,0
155,0
Quantity


Product info

  • Specifications
    Material Casing: Steel
    Material switching ball sealing: POM
    Material switching shaft: steel
    Material switching shaft sealing: NBR

Benefit

Equipped with mounting holes for panel constructions.

Practical tip

Please do not use the ball valve in case of residual pressure.
