P16AP

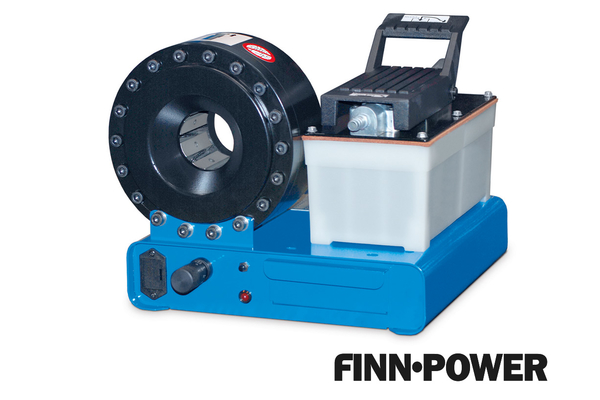

Finn-Power Service crimper with air pump, 95t, crimping range 6,8-45mm

Product info

• Technical data

  Weight [kg]:	28
  Components:	German operating instructions, Spare parts list, Lubricant, Battery for crimping range signal lamp, Drawer for storing crimping jaws, Oil filling
  crimping range [mm]:	6,8 – 45
  crimping force [t]:	95
  Note:	Compressed air supply (pressure 7 bar) required!
  Note on the maximum possible hose qualities/nominal diameters:	Depending on the fittings manufacturer, the crimping forces can vary considerably. Ask your fitting manufacturer about the required crimping forces or have them determined.
  WxDxH [mm]:	331x346x271
  control system:	MS/Manual
  max. hose size [DN]:	1-/2-wire braided hydraulic hoses up to DN25 / 1", hydraulic hoses 4SP up to DN19 / 3/4"
  max. opening crimping head [mm]:	+20
  tank capacity [ltr]:	ca. 0,6
  type pump:	Drive: air pump
