P20CS

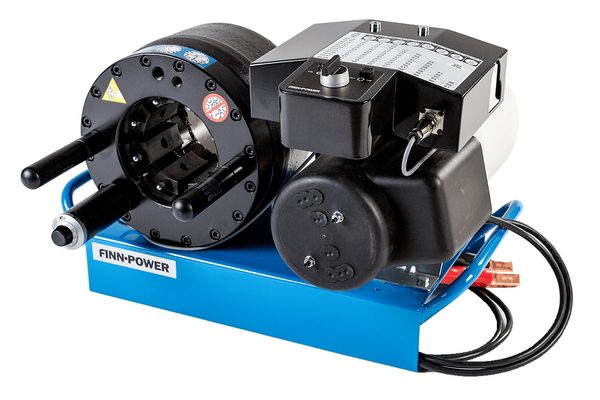

Finn-Power 12V service crimper, 137t, crimping range 6,8-61mm

Product info

• Technical data

  Weight [kg]:	83
  power [kW]:	1,6
  Components:	German operating instructions, spare parts list, tool for exchanging the single die set segments, lubricant, oil filling
  crimping range [mm]:	6,8 – 61
  crimping force [t]:	137
  Note:	This crimper is also available as a two-piece version, with a hydraulic/electric power unit separate from the crimping head, part-no.: P20Z-CS
  Note on the maximum possible hose qualities/nominal diameters:	Depending on the fittings manufacturer, the crimping forces can vary considerably. Ask your fitting manufacturer about the required crimping forces or have them determined.
  WxDxH [mm]:	583x533x387
  control system:	Micrometer control MS
  crimping power 4SP-hose:	DN31
  crimping power braided hose:	DN38
  max. hose size [DN]:	1-/2-wire braided hydraulic hoses up to DN38 / 1.1/2", hydraulic hoses 4SP up to DN31 / 1.1/4"
  max. opening crimping head [mm]:	+25
  tank capacity [ltr]:	ca. 5
  voltage [V]:	12 (DC)
