RS-CF2G14
Pipe clamps, twin series

Product info

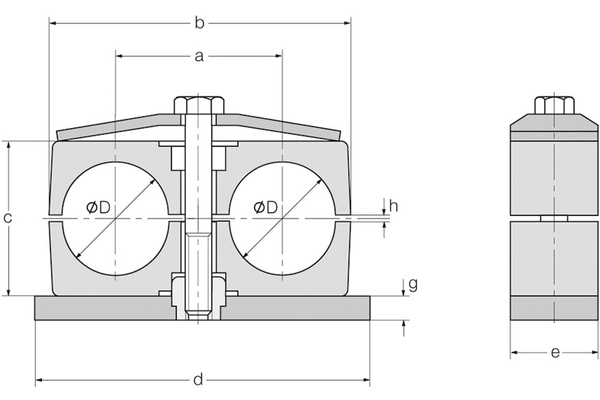

• Specifications

  Color:	green
  DIN:	DIN 3015-3
  Series:	CF2
  Ø D metric [mm]:	13,5
  Nominal pipe-Ø inches:	1/4
  Width b [mm]:	53
  Height c [mm]:	26
  Depth e [mm]:	30
  Material:	Polypropylene
  Product title long:	Basic material for pipe clamps
  clamp half clearance [mm]:	0,7 up to 2,5

Benefit
