RS-CP1G14
Pipe clamps, heavy series

Product info

• Specifications

  Color:	green
  DIN:	DIN 3015-2
  Series:	CP1

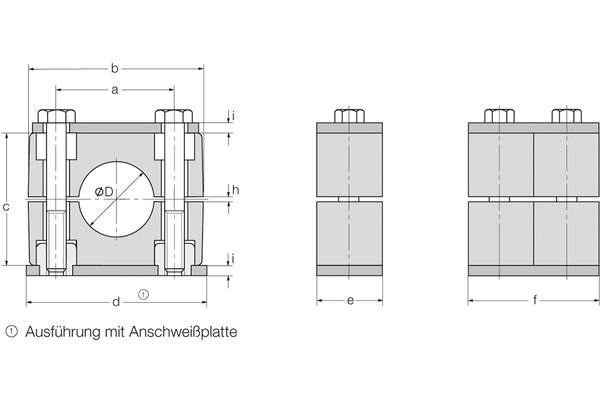

  Ø D metric [mm]:	13,5
  Nominal pipe-Ø inches:	1/4
  Width b [mm]:	55
  Height c [mm]:	32
  Depth e [mm]:	30
  Twice depth f [mm]:	60
  Material:	Polypropylene
  Product title long:	Basic material for pipe clamps
  clamp half clearance [mm]:	0,6 up to 7

Benefit
