Art. No.: HAI16BOF45S16
List number: 03060230

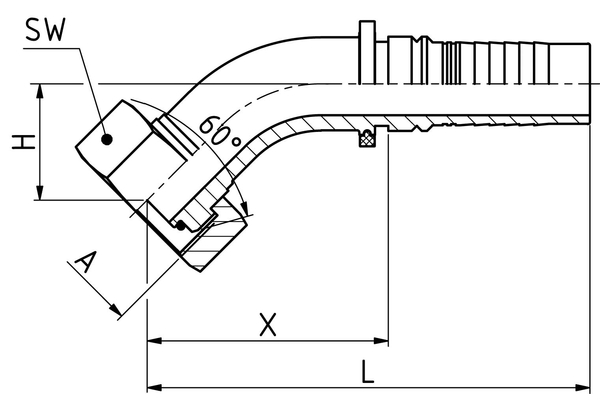

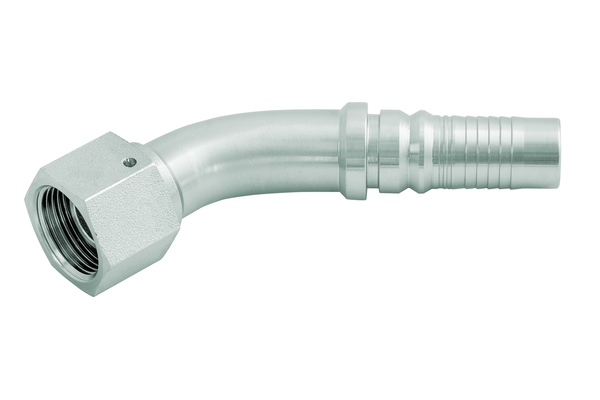

BSP sealing head, 60 ° cone with o-ring and union nut, BSP thread
| DN: | 25 |
| Thread + standard: | BSP sealing head, 60 ° cone with o-ring and union nut, BSP thread |
| Connection thread A: | G 1" |
| X [mm]: | 81,0 |
| H [mm]: | 28,0 |
| SW1 [mm]: | 38 |
| Connection name Indunorm: | BOF 45° |
| Connection type: | DKOR 45° |
| Construction form: | 45° |
| Material: | Free cutting steel, O-Ring: NBR |
| Type of fittings: | Multispiral series HAI 45° |
Reserve technical changes.
