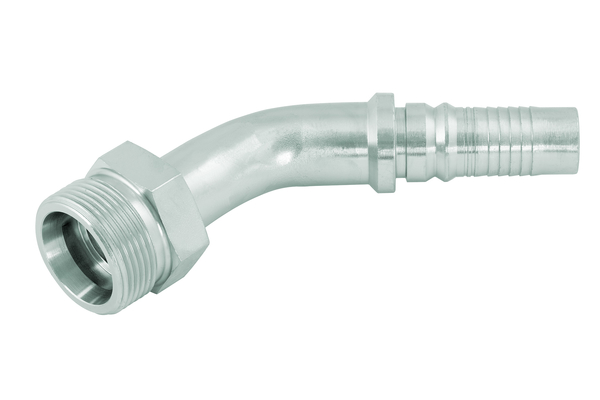

CES 45° (HAI)

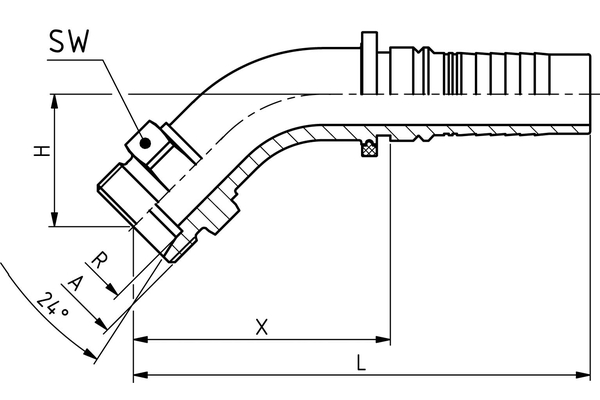

Threaded stem with bore form W (24 °) according to DIN 3861, heavy series

To accessories

Detail

Art. No.

HAI30ME20-45S10

HAI36ME25-45S12

HAI36ME25-45S12SL33

SW1 [mm]

Quantity

Product info

Technical data

Connection name Indunorm:	ME 45°
Connection type:	CES 45°
Construction form:	45°
Material:	Free cutting steel
Type of fittings:	Multispiral series HAI

Practical tip

The cutting ring pre-assembly should take place in the hardened flaring tool RV..VM-L/S. For the correct assembly of the cutting rings, please refer to our assembly instructions in the technical annex.
