DKJ 45° (HAI)

Similar image
Similar image

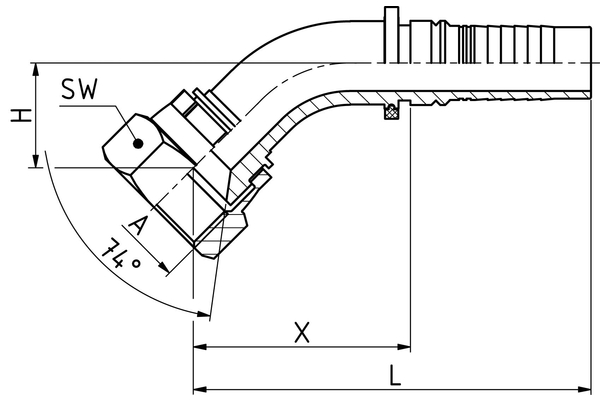

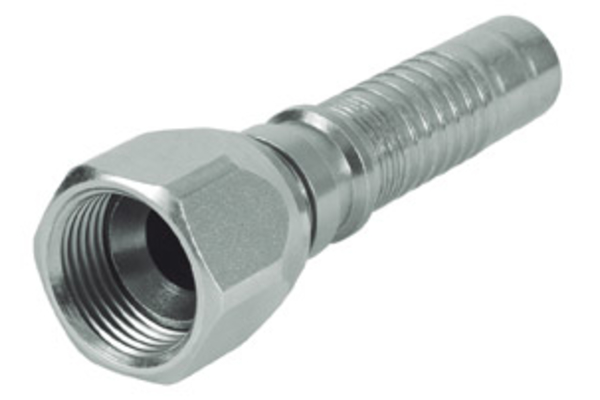

JIC threaded adapter, 74 ° cone with UN / UNF thread

To accessories

Detail

Art. No.
HAI17JF45S12
%
SALE
HAI21JF45S12
%
SALE
HAI21JF45S16
%
SALE
HAI26JF45S20
%
SALE
DN
19
19
25
31
Thread + standard
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
Connection thread A
1.1/16"-12
1.5/16"-12
1.5/16"-12
1.5/8"-12
X [mm]
66,0
72,0
80,0
93,0
H [mm]
27,5
30,0
31,0
37,0
SW1 [mm]
32
38
38
50
Quantity


Product info

  • Technical data
    Connection name Indunorm: JF 45°
    Connection type: DKJ 45°
    Construction form: 45°
    Material: Free cutting steel
    Type of fittings: Multispiral series HAI 45°
