HI-S24BOF90S24
DKOR 90° BOF 90°

Product info

• Specifications

  DN:	38
  Size:	24
  Inch:	1.1/2
  Thread + standard:	BSP sealing head, 60 ° cone with O-ring and union nut, BSP thread
  Connection thread A:	G 1.1/2"

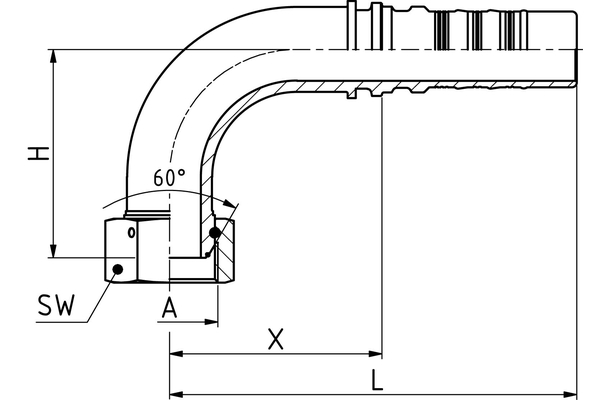

  X [mm]:	113,7
  L1 [mm]:	210,0
  H [mm]:	100,0
  Outer diameter O-ring [mm]:	35,1
  Height O-ring [mm]:	1,6
  SW1 [mm]:	55
  Connection name Indunorm:	BOF 90°
  Connection type:	DKOR 90°
  Material:	steel
  Material O-Ring:	NBR
  Surface:	zinc plated, chrom 6-free
  Type of fittings:	Multi spiral series HI
