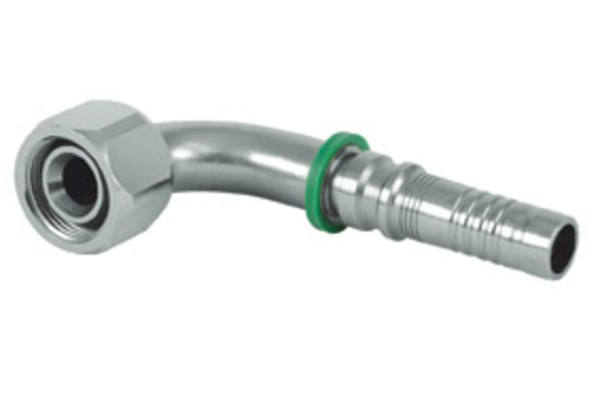

HV-S12BOF90S12
DKOR 90° BOF 90°

Product info

• Specifications

  DN:	19
  Size:	12
  Inch:	3/4
  Thread + standard:	BSP sealing head, 60 ° cone with o-ring and union nut, BSP thread
  Connection thread A:	G 3/4"

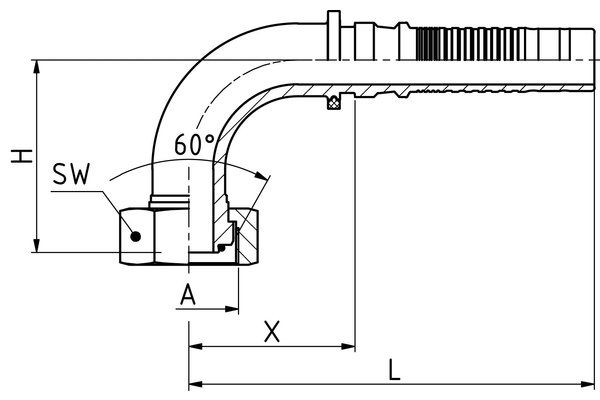

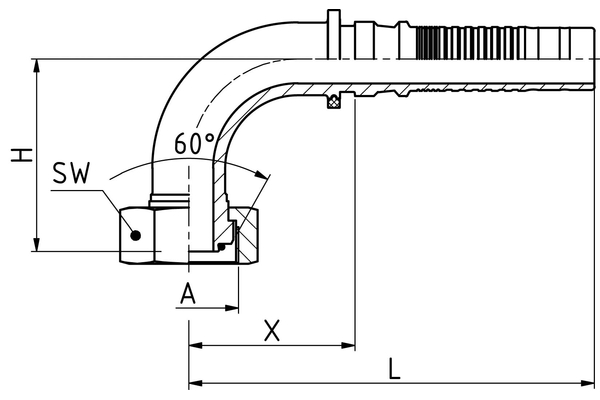

  X [mm]:	52,5
  L1 [mm]:	125,0
  H [mm]:	63,5
  Outer diameter O-ring [mm]:	17,1
  Height O-ring [mm]:	1,6
  SW1 [mm]:	32
  Connection name Indunorm:	BOF 90°
  Connection type:	DKOR 90°
  Construction form:	90°
  Material:	Free cutting steel, O-Ring: NBR
  Material O-Ring:	NBR
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	ZnNi
  Type of fittings:	Multispiral series HV
