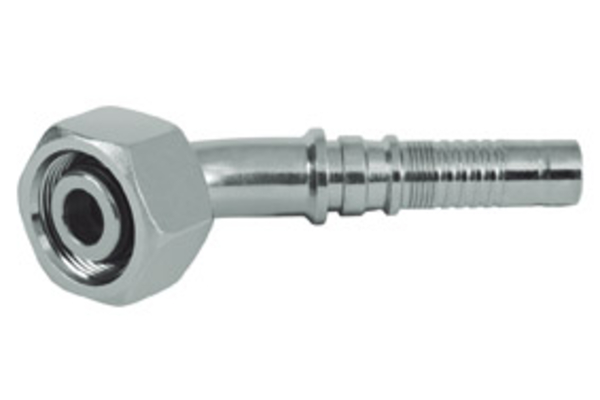

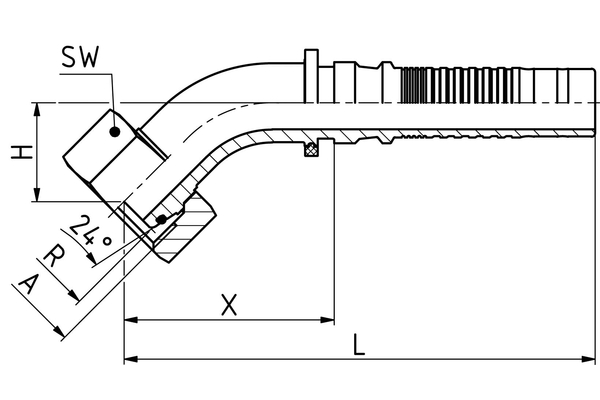

DKOS 45° (HV)

Detail

DN
16
19
19
19
25
25
25
31
12
Size
10
12
12
12
16
16
16
20
Inch
5/8
3/4
3/4
3/4
1
1
1
1.1/4
Thread + standard
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Connection thread A
M30x2
M30x2
M36x2
M36x2
M36x2
M42x2
M52x2
M52x2
M24x1,5
Pipe Ø R [mm]
38S
X [mm]
55,5
70,0
64,5
64,5
83,0
80,5
96,5
98,5
L1 [mm]
113,0
142,5
137,5
137,5
162,5
160,0
176,0
176,5
H [mm]
25,0
30,5
29,0
29,0
35,0
36,5
40,5
41,5
Outer diameter O-ring [mm]
17,5
17,5
22,0
22,0
22,0
27,0
33,0
33,0
Height O-ring [mm]
2,5
2,5
2,5
2,5
2,5
2,5
2,5
2,5
SW1 [mm]
36
36
46
41
46
50
60
60
30
Type of nut
Union nut
Union nut
Union nut
Union nut
Union nut
Union nut
Union nut
Union nut
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: MSOF 45°
    Connection type: DKOS 45°
    Construction form: 45°
    Material: Free cutting steel, O-Ring: NBR
    Resistance against red rust [h]: 720
    Resistance against white rust [h]: 120
    Surface: ZnNi
    Type of fittings: Multispiral series HV

Practical tip

Using the nipple assembly tool NEV6-50H-2 together with accessory NEV-WFB-2 elbow fittings can be installed with little effort.
