Product info
-
Specifications

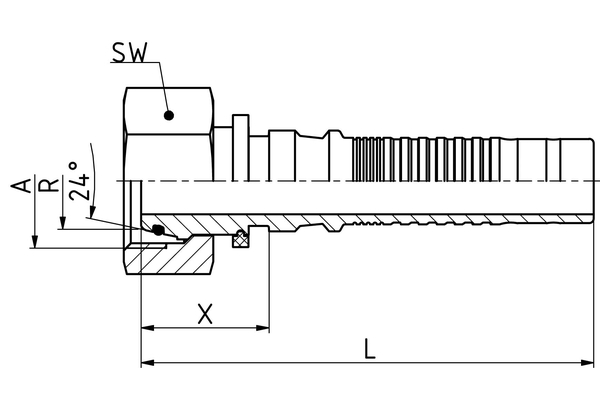

DN: 25 Size: 16 Inch: 1 Thread + standard: Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series Connection thread A: M36x2 X [mm]: 64,0 L1 [mm]: 143,5 Outer diameter O-ring [mm]: 22,0 SW1 [mm]: 46 Type of nut: Union nut Connection name Indunorm: MSOF Connection type: DKOS Construction form: 0° Material: Free cutting steel, O-Ring: NBR Material O-Ring: NBR Resistance against red rust [h]: 720 Resistance against white rust [h]: 120 Surface: ZnNi Type of fittings: Multispiral series HV
