HV16SFH9-16
SFS CAT SFH 9

Product info

• Technical data

  DN:	25
  Size:	16
  Inch:	1
  Thread + standard:	Flange head (CAT) high pressure series
  Flange size D2:	1"

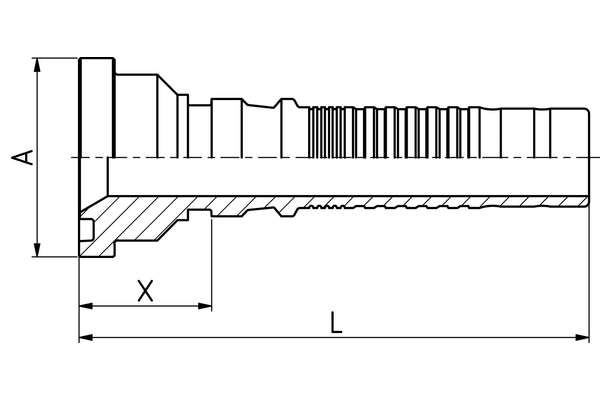

  X [mm]:	55,0
  L1 [mm]:	134,5
  D2 [mm]:	47,6
  Connection name Indunorm:	SFH 9
  Connection type:	SFS CAT
  Construction form:	0°
  Material:	Free cutting steel
  Type of fittings:	Multispiral series HV
