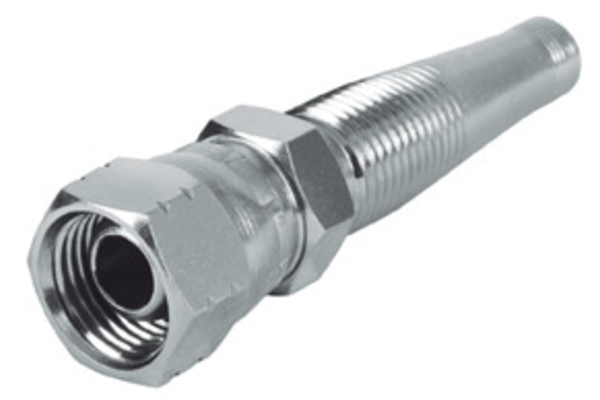

R22MSF15-08
DKL MSF

Product info

• Technical data

  DN:	12
  Size:	08
  Inch:	1/2
  Thread + standard:	Threaded stem with bore form W (24 °) according to DIN 3861, light series

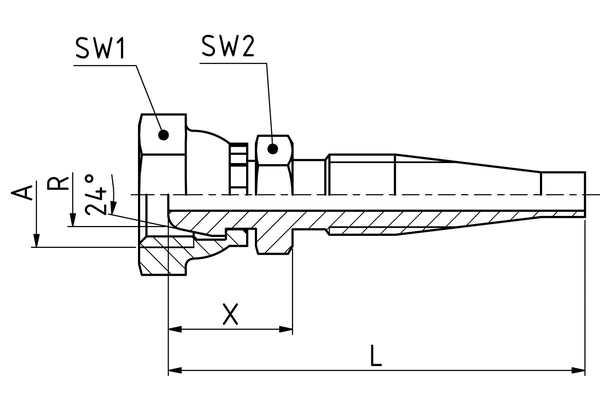

  Connection thread A:	M22x1,5
  Pipe Ø R [mm]:	15
  X [mm]:	24,0
  L1 [mm]:	71,4
  SW1 [mm]:	27
  SW2 [mm]:	27
  Connection name Indunorm:	MSF
  Connection type:	DKL
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	zinc plated, chrom 6-free
  Type of fittings:	Reusable series R
