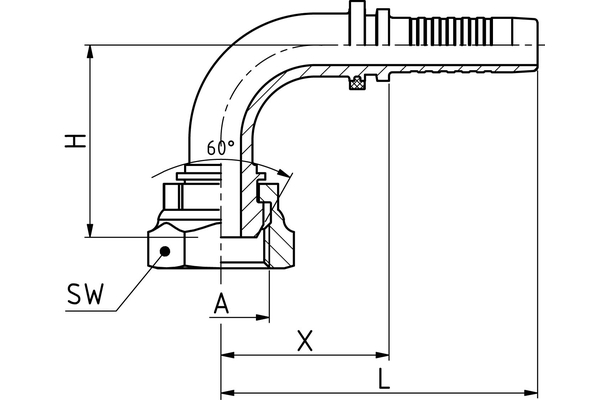

XV06B90S05
DKR 90° BF 90°

Product info

• Technical data

  DN:	08
  Size:	05
  Inch:	5/16
  Thread + standard:	BSP sealing head, 60 ° cone with union nut, BSP thread
  Connection thread A:	G 3/8"
  X [mm]:	33,0
  L1 [mm]:	59,5
  H [mm]:	34,0
  SW1 [mm]:	22
  Type of nut:	CR
  Connection name Indunorm:	BF 90°
  Connection type:	DKR 90°
  Construction form:	90°
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
