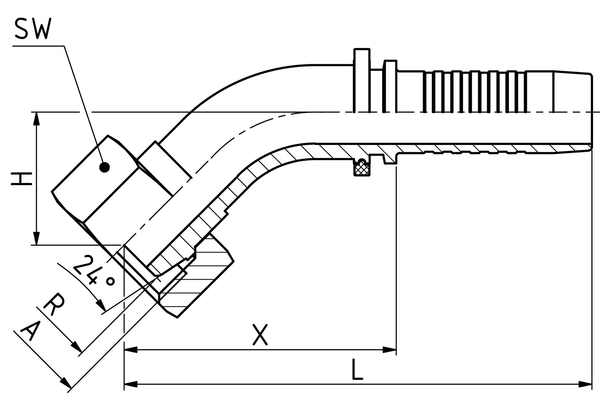

XV22MSF15-45S08
DKL 45° MSF 45°

Product info

• Technical data

  DN:	12
  Size:	08
  Inch:	1/2
  Thread + standard:	Sealing cone with union nut light series
  Connection thread A:	M22x1,5
  Pipe Ø R [mm]:	15
  X [mm]:	45,0
  L1 [mm]:	80,5
  H [mm]:	20,0
  SW1 [mm]:	27
  Type of nut:	Union nut
  Connection name Indunorm:	MSF 45°
  Connection type:	DKL 45°
  Construction form:	45°
  Material:	Free cutting steel
  Type of fittings:	Universal series XV
