XV38MF90S16
DKM 90° MF 90°

Product info

• Technical data

  DN:	25
  Size:	16
  Inch:	1
  Thread + standard:	Universal sealing cone with union nut, metric fine thread

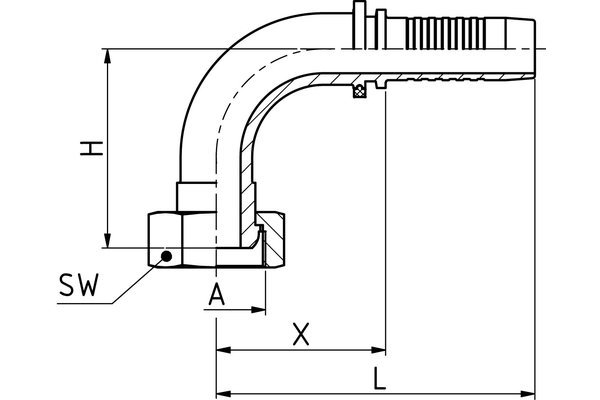

  Connection thread A:	M38x1,5
  Pipe Ø R [mm]:	28
  X [mm]:	78,0
  L1 [mm]:	133,0
  H [mm]:	72,0
  SW1 [mm]:	46
  Type of nut:	union nut
  Connection name Indunorm:	ME 90°
  Connection type:	DKM 90°
  Construction form:	90°
  Material:	Free cutting steel
  Surface:	Cr3
  Type of fittings:	Universal series XV
