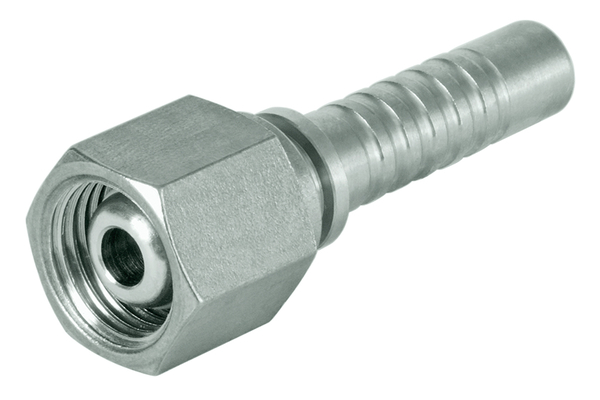

XV22MSOF15-06
DKOL MSOF

Product info

• Technical data

  DN:	10
  Size:	06
  Inch:	3/8

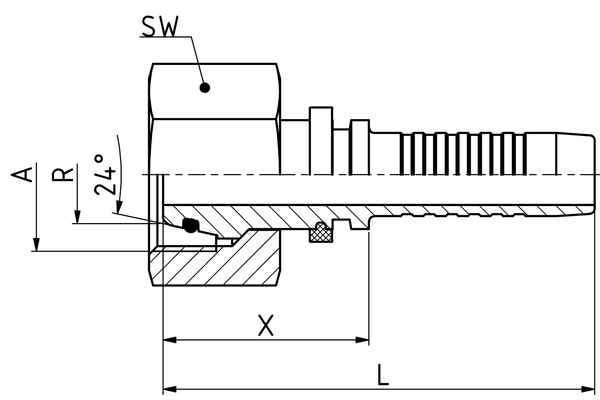

  Thread + standard:	Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
  Connection thread A:	M22x1,5
  Pipe Ø R [mm]:	15
  X [mm]:	23,8
  L1 [mm]:	57,3
  Outer diameter O-ring [mm]:	12
  Height O-ring [mm]:	2,0
  Height O-Ring [mm]:	2,0
  SW1 [mm]:	27
  Type of nut:	Union nut
  Connection name Indunorm:	MSOF
  Connection type:	DKOL
  Material:	Free cutting steel
  Material O-Ring:	NBR 70
  Resistance against red rust [h]:	720
  Resistance against white rust [h]:	120
  Surface:	ZnNi
  Type of fittings:	Universal series XV
