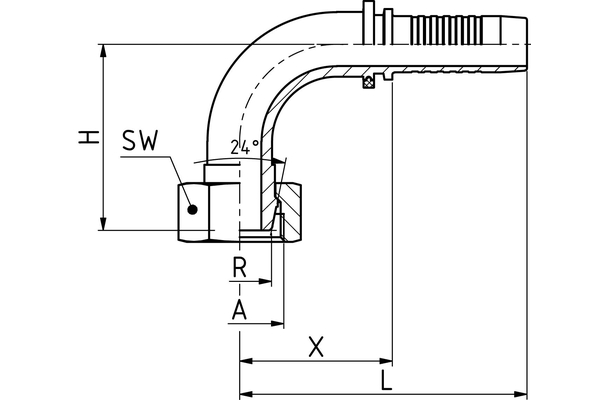

XV42MSF30-90S16
DKS 90° MSF 90°

Product info

• Technical data

  DN:	25
  Size:	16
  Inch:	1
  Thread + standard:	Sealing cone with union nut heavy series
  Connection thread A:	M42x2,0
  Pipe Ø R [mm]:	30
  X [mm]:	61,4
  L1 [mm]:	116,6
  H [mm]:	71,6
  SW1 [mm]:	50
  Connection name Indunorm:	MSF 90°
  Connection type:	DKS 90°
  Construction form:	90°
  Material:	Free cutting steel
  Surface:	Cr3
  Type of fittings:	Universal series XV
