VC12MRN05

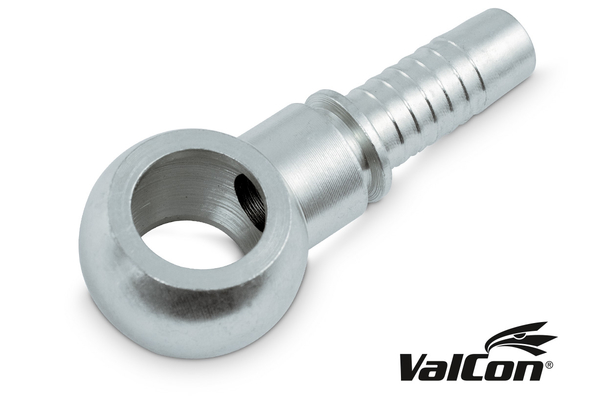

Valcon® swage fitting RGN MRN

Product info

• Technical data

  DN:	8
  Size:	05
  Inch:	5/16"
  Thread + standard:	Ring nipple according to DIN 7642 for metric banjo bolts
  d [mm]:	5,5
  Pipe E [mm]:	22
  T:	M12
  Ringnipple bore hole [mm]:	M12
  E [mm]:	20
  C [mm]:	22,0
  L [mm]:	51,5
  Connection name Indunorm:	MRN
  Connection type:	RGN
  Construction form:	0°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
