VC16SFH45S16

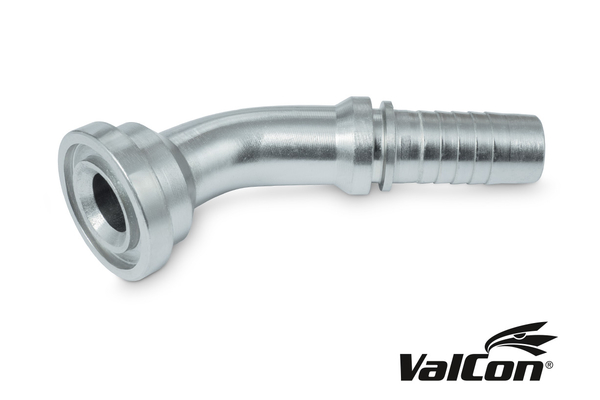

Valcon® swage fitting SFL 3.000 PSI 45° SFH 45°

Product info

• Technical data

  DN:	25
  Size:	16
  Inch:	1"
  Thread + standard:	Flange head SAE J514 (ISO 6162) standard series 3000 PSI

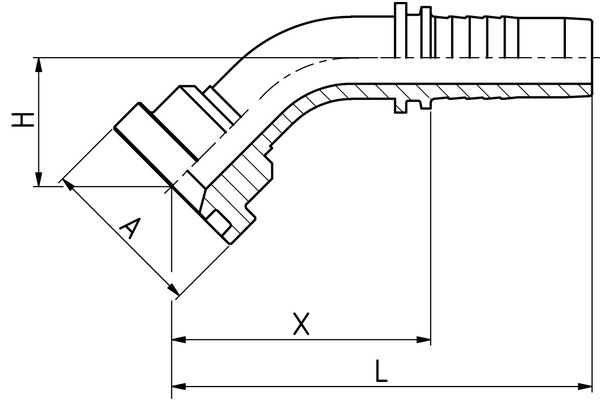

  H [mm]:	35,0
  d [mm]:	20,0
  T:	1
  C [mm]:	82,0
  L [mm]:	135,5
  Connection name Indunorm:	SFH 45°
  Connection type:	SFL 3000 PSI 45°
  Construction form:	45°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
