VC12SFH6-45S08

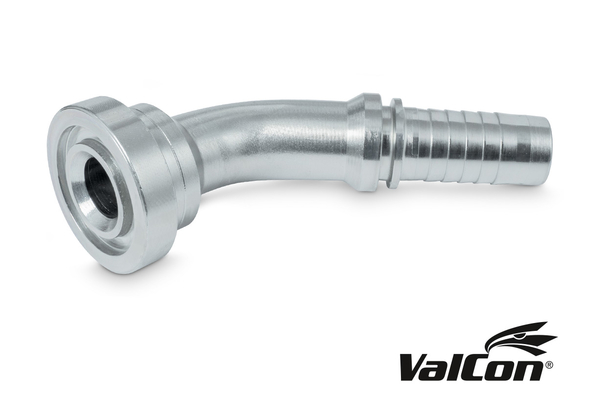

Valcon® swage fitting SFS 6.000 PSI 45° SFH 6 - 45°

Product info

• Technical data

  DN:	12
  Size:	08
  Inch:	1/2"
  Thread + standard:	Flange head SAE J514 (IS 6162) high pressure series, 6000 PSI

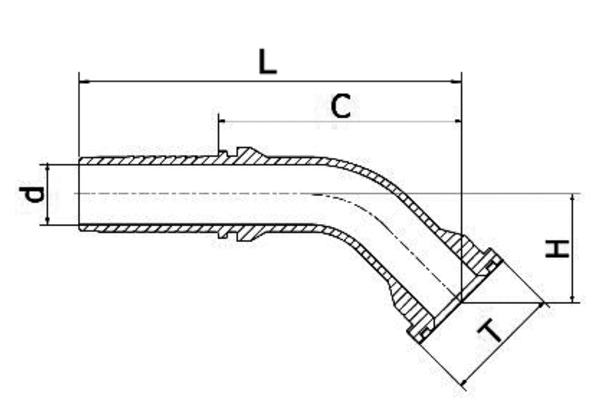

  H [mm]:	28,0
  d [mm]:	9,5
  T:	3/4
  C [mm]:	69,0
  L [mm]:	88,5
  Connection name Indunorm:	SFH 6 - 45°
  Connection type:	SFS 6000 PSI 45°
  Construction form:	45°
  Material:	free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
