VC16SFH6-45S16

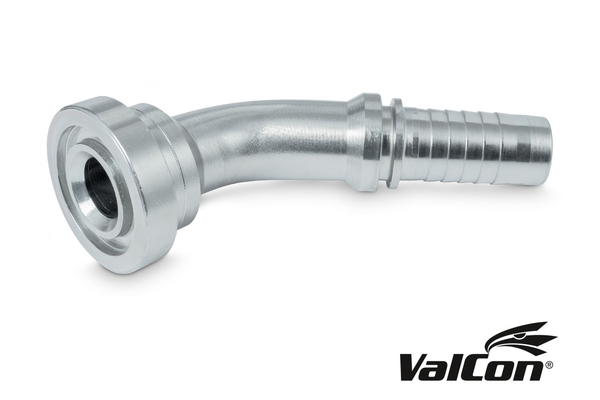

Valcon® swage fitting SFS 6.000 PSI 45° SFH 6 - 45°

Product info

• Technical data

  DN:	25
  Size:	16
  Inch:	1"
  Thread + standard:	Flange head SAE J514 (IS 6162) high pressure series, 6000 PSI

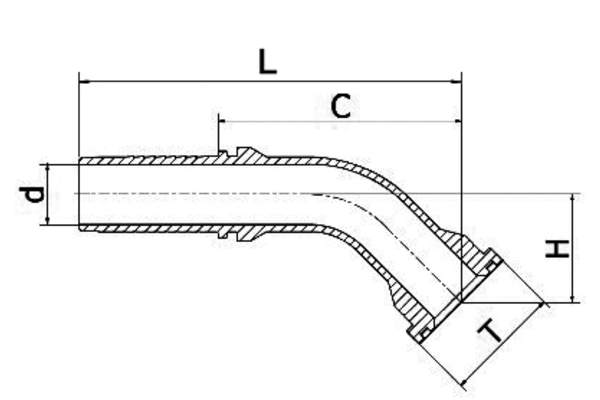

  H [mm]:	36,0
  d [mm]:	20,0
  T:	1
  C [mm]:	85,0
  L [mm]:	138,5
  Connection name Indunorm:	SFH 6 - 45°
  Connection type:	SFS 6000 PSI 45°
  Construction form:	45°
  Material:	free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
