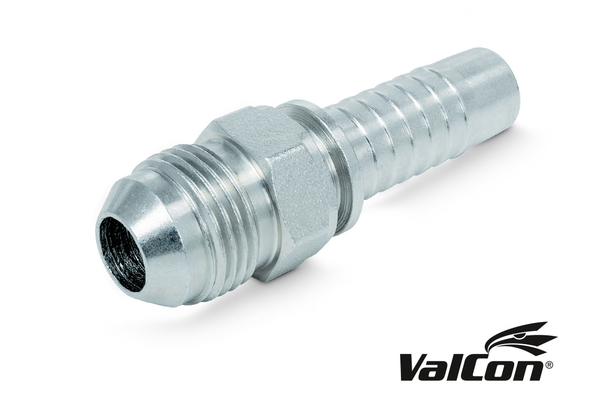

VC14JM06
Valcon® swage fitting AGJ JM

Product info

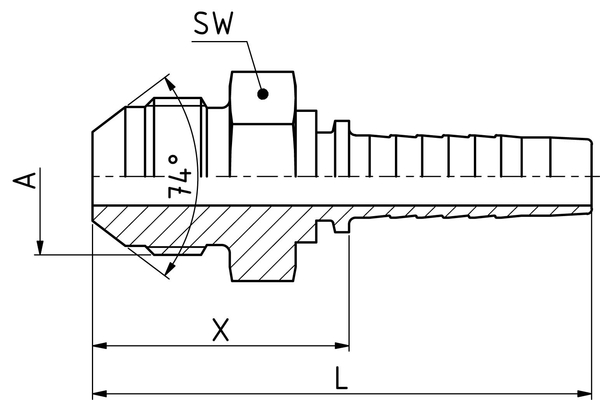

• Technical data

  DN:	10
  Size:	06
  Inch:	3/8"
  Thread + standard:	JIC threaded adapter, 74 ° cone with UN / UNF thread
  d [mm]:	7,0
  T:	7/8-14
  E [mm]:	24
  C [mm]:	36,0
  L [mm]:	63,5
  Connection name Indunorm:	JM
  Connection type:	AGJ
  Construction form:	0°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
