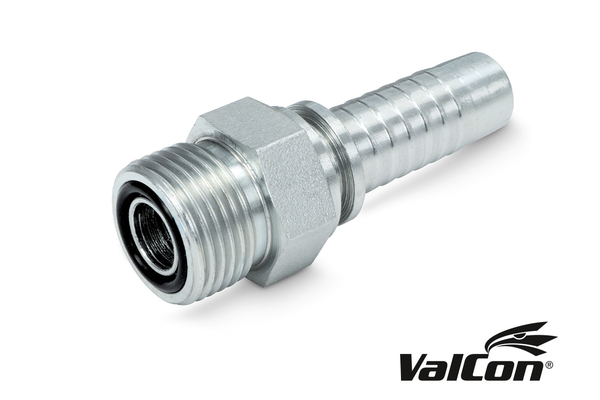

Valcon® ORFS with male thread

Similar image
Similar image

ORFS Sealing form, male thread with frontal O-ring, UN / UNF / UNS-Thread

To accessories

Detail

Art. No.
VC04ORM04
%
SALE
VC06ORM06
%
SALE
VC08ORM08
%
SALE
VC10ORM10
%
SALE
VC12ORM12
%
SALE
VC16ORM16
%
SALE
DN
6
10
12
16
19
25
Size
04
06
08
10
12
16
Inch
1/4"
3/8"
1/2"
5/8"
3/4"
1"
Thread + standard
ORFS Sealing form, male thread with frontal O-ring, UN / UNF / UNS-Thread
ORFS Sealing form, male thread with frontal O-ring, UN / UNF / UNS-Thread
ORFS Sealing form, male thread with frontal O-ring, UN / UNF / UNS-Thread
ORFS Sealing form, male thread with frontal O-ring, UN / UNF / UNS-Thread
ORFS Sealing form, male thread with frontal O-ring, UN / UNF / UNS-Thread
ORFS Sealing form, male thread with frontal O-ring, UN / UNF / UNS-Thread

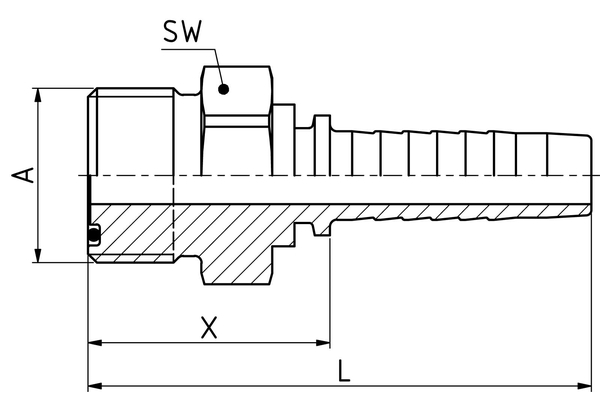

d [mm]
4,0
7,0
9,5
12,0
15,0
20,0
T
9/16-18
11/16-16
13/16-16
1-14
1.3/16-12
1.7/16-12
E [mm]
15
19
22
27
32
38
C [mm]
32,2
26,2
29,3
33,4
35,9
37,4
L [mm]
48,2
55,7
60,8
67,9
75,5
90,9
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: ORM
    Connection type: ORFS with male thread
    Construction form: 0°
    Material: Free cutting steel
    Surface: CrIII
    Type of fittings: VC
