VC09J45S05
Valcon® swage fitting DKJ 45° JF 45°

Product info

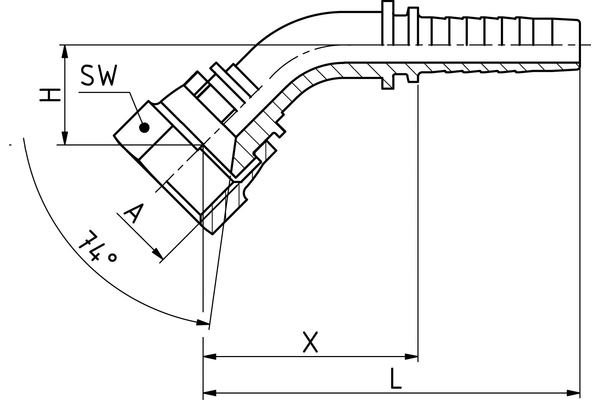

• Technical data

  DN:	8
  Size:	05
  Inch:	5/16"
  Thread + standard:	JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
  H [mm]:	15,0
  d [mm]:	5,5
  T:	9/16-18
  E [mm]:	19
  C [mm]:	42,0
  L [mm]:	70,0
  Connection name Indunorm:	JF 45°
  Connection type:	DKJ 45°
  Construction form:	45°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
