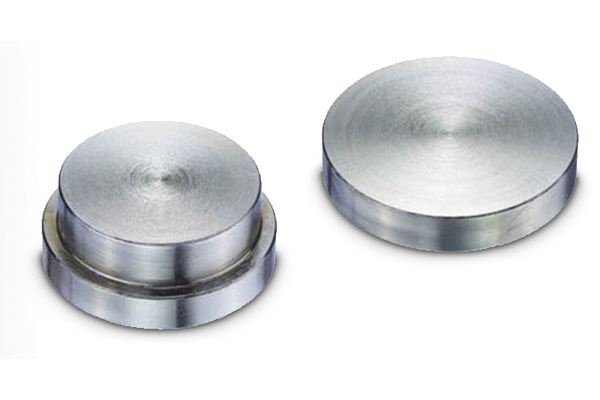

SAE blind plate / SAE blind plug / SAE blind flange

Detail

DN
12
19
25
32
38
51
12
19
25
32
38
51
12
19
25
32
38
51
12
19
25
32
38
51
Size
08
12
16
20
24
32
08
12
16
20
24
32
08
12
16
20
24
32
08
12
16
20
24
32
Inch
1/2
3/4
1
1.1/4
1.1/2
2
1/2
3/4
1
1.1/4
1.1/2
2
1/2
3/4
1
1.1/4
1.1/2
2
1/2
3/4
1
1.1/4
1.1/2
2

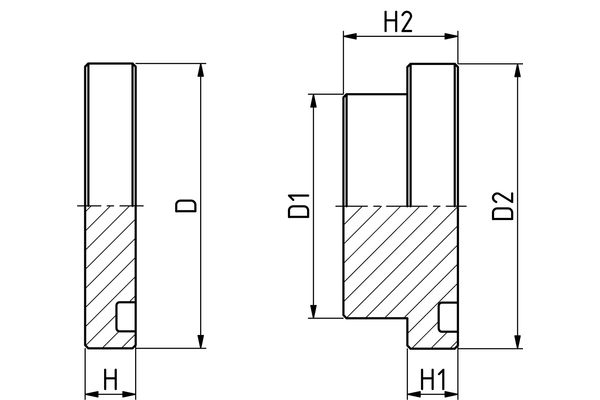

Flange size D2
3.000 psi
3.000 psi
3.000 psi
3.000 psi
3.000 psi
3.000 psi
3.000 psi
3.000 psi
3.000 psi
3.000 psi
3.000 psi
3.000 psi
6.000 psi
6.000 psi
6.000 psi
6.000 psi
6.000 psi
6.000 psi
6.000 psi
6.000 psi
6.000 psi
6.000 psi
6.000 psi
6.000 psi
D [mm]
30,2
38,1
44,45
50,8
60,35
71,4
30,2
38,1
44,45
50,8
60,35
71,4
31,8
41,3
47,6
54,0
63,5
79,4
31,8
41,3
47,6
54,0
63,5
79,4
L1 [mm]
-
-
-
-
-
-
15,0
16,0
18,0
18,0
18,0
21,0
-
-
-
-
-
-
18,0
21,0
26,0
31,0
34,0
42,0
L [mm]
6,8
6,8
8,0
8,0
8,0
9,6
6,8
6,8
8,0
8,0
8,0
9,6
7,8
8,8
9,5
10,3
12,6
12,6
7,8
8,8
9,5
10,3
12,6
12,6
Quantity


Product info

  • Specifications
    Material: Free cutting steel
    Surface: CrIII
    Type of fittings: XV, HV, HI, HAN, VC

Practical tip

The high version uses half flanges, the low version uses full flanges.
Due to the pitch, on the higher version the centring of the half flanges is carried out using the turned diameter, whereas with the full flanges it is carried out using the flange plate diameter.
