XV..C

Similar image
Similar image

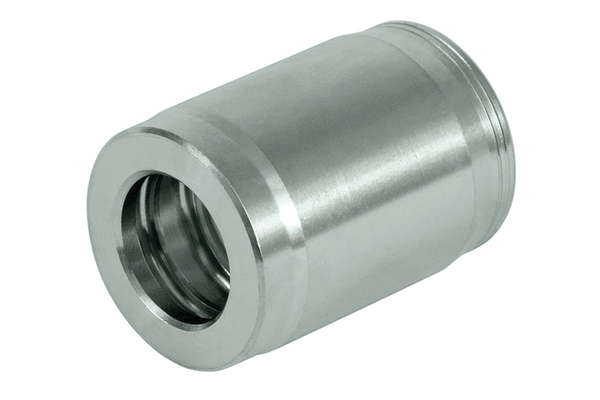

Swage ferrule

To accessories

Detail

Art. No.
XV03C
%
SALE
XV04C
%
SALE
XV05C
%
SALE
XV06C
%
SALE
XV08C
%
SALE
XV10C
%
SALE
XV12C
%
SALE
XV16C
%
SALE
XV20C
%
SALE
XV24C
%
SALE
DN
05
06
08
10
12
16
19
25
31
38
Size
03
04
05
06
08
10
12
16
20
24
Inch
3/16
1/4
5/16
3/8
1/2
5/8
3/4
1
1.1/4
1.1/2

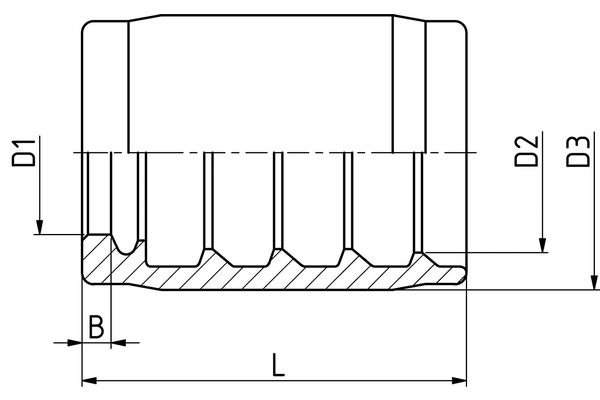

D2 [mm]
17,3
20,0
20,6
23,6
27,0
30,0
35,0
42,0
50,7
62,0
Thread + standard
Swage ferrule, skive (outside) for: 1SN-hose, 2SC-hose (Swage ferrule XV10D/4L is used for DN 16), 1HWS-hose, SP2Plus ®, TP1 (DN25)
Swage ferrule, skive (outside) for: 1SN-hose, 2SC-hose (Swage ferrule XV10D/4L is used for DN 16), 1HWS-hose, SP2Plus ®, TP1 (DN25)
Swage ferrule, skive (outside) for: 1SN-hose, 2SC-hose (Swage ferrule XV10D/4L is used for DN 16), 1HWS-hose, SP2Plus ®, TP1 (DN25)
Swage ferrule, skive (outside) for: 1SN-hose, 2SC-hose (Swage ferrule XV10D/4L is used for DN 16), 1HWS-hose, SP2Plus ®, TP1 (DN25)
Swage ferrule, skive (outside) for: 1SN-hose, 2SC-hose (Swage ferrule XV10D/4L is used for DN 16), 1HWS-hose, SP2Plus ®, TP1 (DN25)
Swage ferrule, skive (outside) for: 1SN-hose, 2SC-hose (Swage ferrule XV10D/4L is used for DN 16), 1HWS-hose, SP2Plus ®, TP1 (DN25)
Swage ferrule, skive (outside) for: 1SN-hose, 2SC-hose (Swage ferrule XV10D/4L is used for DN 16), 1HWS-hose, SP2Plus ®, TP1 (DN25)
Swage ferrule, skive (outside) for: 1SN-hose, 2SC-hose (Swage ferrule XV10D/4L is used for DN 16), 1HWS-hose, SP2Plus ®, TP1 (DN25)
Swage ferrule, skive (outside) for: 1SN-hose, 2SC-hose (Swage ferrule XV10D/4L is used for DN 16), 1HWS-hose, SP2Plus ®, TP1 (DN25)
Swage ferrule, skive (outside) for: 1SN-hose, 2SC-hose (Swage ferrule XV10D/4L is used for DN 16), 1HWS-hose, SP2Plus ®, TP1 (DN25)
L [mm]
27,3
31,0
31,0
33,0
35,0
38,0
44,0
52,0
59,0
68,0
b [mm]
2,0
2,5
2,6
2,5
2,5
2,6
3,0
3,7
3,9
4,3
D [mm]
9,4
11,0
12,6
14,1
17,6
21,6
24,5
30,4
37,8
44,4
D1 [mm]
10,9
13,2
15,5
16,6
19,5
23,0
26,8
34,1
41,6
51,3
Quantity


Product info

  • Specifications
    Connection name Indunorm: XV..C
    Material: Free cutting steel
    Material: free cutting steel
    Resistance against red rust [h]: 500
    Resistance against white rust [h]: 96
    Surface: Zinc-Nickel
    Type of fittings: Universal series XV
    application: Swage ferrule
