XV..P3W

Similar image
Similar image

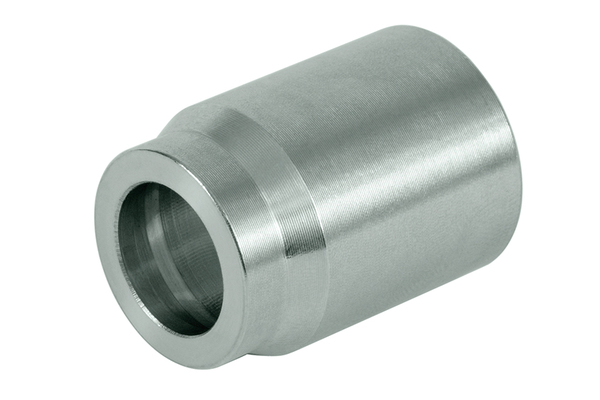

Swage ferrule, non-skive version

To accessories

Detail

Art. No.
XV04P3W
%
SALE
XV05P3W
%
SALE
XV06P3W
%
SALE
XV08P3W
%
SALE
XV10P3W
%
SALE
XV12P3W
%
SALE
XV16P3W
%
SALE
XV20P3W
%
SALE
DN
06
08
10
12
16
19
25
31
Size
04
05
06
08
10
12
16
20
Inch
1/4
5/16
3/8
1/2
5/8
3/4
1
1.1/4

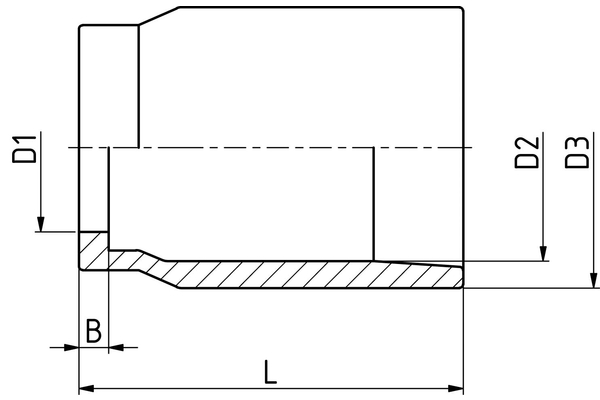

D2 [mm]
18,0
20,0
23,5
26,3
30,0
34,3
40,6
51,0
Thread + standard
Swage ferrule, non-skive, for TEF1H (swage ferrule XV03P2 is used for DN05), TEF2H, TEF5H, TEF3W-H
Swage ferrule, non-skive, for TEF1H (swage ferrule XV03P2 is used for DN05), TEF2H, TEF5H, TEF3W-H
Swage ferrule, non-skive, for TEF1H (swage ferrule XV03P2 is used for DN05), TEF2H, TEF5H, TEF3W-H
Swage ferrule, non-skive, for TEF1H (swage ferrule XV03P2 is used for DN05), TEF2H, TEF5H, TEF3W-H
Swage ferrule, non-skive, for TEF1H (swage ferrule XV03P2 is used for DN05), TEF2H, TEF5H, TEF3W-H
Swage ferrule, non-skive, for TEF1H (swage ferrule XV03P2 is used for DN05), TEF2H, TEF5H, TEF3W-H
Swage ferrule, non-skive, for TEF1H (swage ferrule XV03P2 is used for DN05), TEF2H, TEF5H, TEF3W-H
Swage ferrule, non-skive, for TEF1H (swage ferrule XV03P2 is used for DN05), TEF2H, TEF5H, TEF3W-H
L [mm]
30,0
32,0
32,0
34,7
37,5
42,0
50,0
63,0
D [mm]
10,5
12,0
14,1
18,5
20,5
24,5
30,5
37,8
D1 [mm]
14,0
16,0
19,0
22,1
25,0
29,5
35,0
42,6
Quantity


Product info

  • Specifications
    Connection name Indunorm: XV..P3W
    Material: Free cutting steel
    Material: free cutting steel
    Surface: galvanised and Cr III passivated
    Type of fittings: Universal series XV
    application: Ferrule, no-skive

Benefit

Combining this ferrule with the XV universal series nipple all Indunorm PTFE hoses can be assembled. This saves money and storage space.
