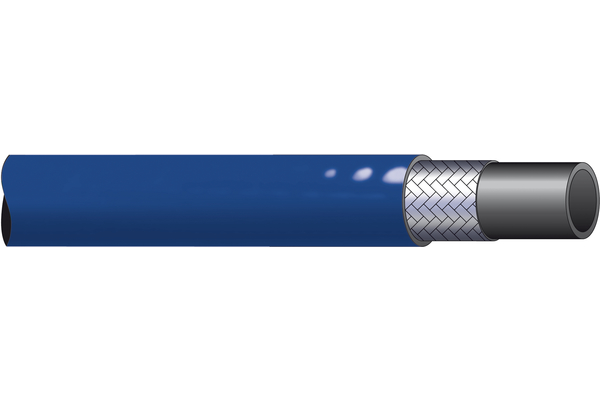

Thermoplastic paint spray hose TP3FS

Paint spraying hose with high resistance to a variety of media

To accessories

Detail

Art. No.

TP3FS05

TP3FS06

TP3FS10

TP3FS12

TP3FS20

Size

Inch

3/16

1/4

3/8

1/2

3/4

Outer Ø [mm]

9,7

11,7

15,5

18,8

25,8

Inner Ø [mm]

5,0

6,5

9,8

13,0

19,5

bending radius [mm]

145

working pressure [bar]

360

310

225

190

115

burst pressure [bar]

1440

1240

900

760

460

Safety factor

4:1

Standard ferrule

XV03R1

XV04R1

XV06R1

XV08R1

XV12R1

Weight [kg]

0,120

0,150

0,225

0,295

0,425

Static test pressure [bar]

720

620

450

380

230

Quantity

Product info

Technical data

Color cover:	blue
Color inner tube:	black
Cover:	Polyurethan
Inner tube:	Seamless extruded polyamide tube (PA6)
MSHA-Approval:	no
Media:	Airless applications of paint industry, solvents and other chemicals, for air and water-based media
Norm/Standards:	Meets or exceeds EN853 1ST, EN 857 1SC, SAE 100R1 with regard to the operating pressure
Reinforcement:	1 layer of high tensile, brass plated steel wire
Temperature range [°C]:	- 40 ° C to + 100 ° C; Airless applications of paint industry, solvents and other chemicals, + 70 ° C for air and water-based media
application:	Paint spray systems
max operating temperature [°C]:	+100°C
number of layers:	1
