MXT20 - Gates MXT braided hose | Indunorm Hydraulik Shop

DN:	19
Size:	12
Inch:	3/4
Outer Ø [mm]:	27,4
Inner Ø [mm]:	19
bending radius [mm]:	120
working pressure [bar]:	215
burst pressure [bar]:	860
Safety factor:	4:1
Standard ferrule:	XVN12
Weight [kg]:	0,70
Static test pressure [bar]:	430
Approvals:	MSHA approval
Color cover:	black
Color inner tube:	black
Cover:	Black, smooth, abrasion-resistant NBR/PVC-based synthetic rubber. Meets MSHA requirements for flame resistance.
Inner tube:	NBR (nitrile) based
MSHA-Approval:	yes
Media:	The MXT hose is suitable for biodegradable hydraulic fluids such as synthetic esters, polyglycols, vegetable oils and mineral oil-based fluids.
Norm/Standards:	Meets the performance requirements of EN 853 2SN and EN 857 2SC. Meets the dimensional requirements of ISO 11237 R16 and ISO 11237 R17 (-6 to -12). Meets the performance requirements of ISO 1436 R2 and ISO 11237 R19 (-6 and -8).
Reinforcement:	High tensile steel wire braid
Temperature range [°C]:	-40 ºC to +100 ºC.
application:	High-pressure hydraulic applications: easy routing and problem-free installation in compact hydraulic systems Cross-sector and multifunctional hydraulic solution.
max operating temperature [°C]:	100°C
number of layers:	DN6 and DN8 2 layer, DN10 to DN25 1 layer

MXT20

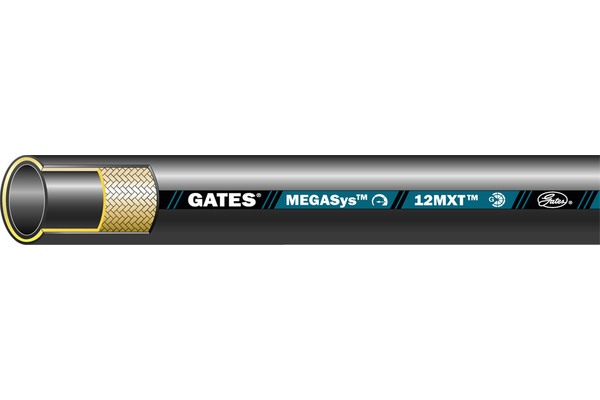

Gates MXT braided hose
