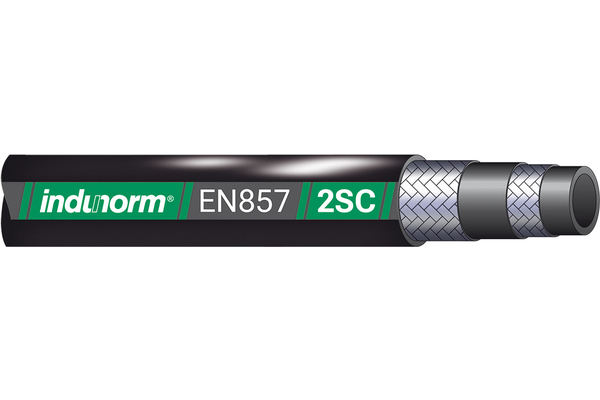

Braided Hose 2SC..S (EN 857 - 2SC) smooth cover

Detail

Art. No.
2SC06S
%
SALE
2SC08S
%
SALE
2SC10S
%
SALE
2SC12S
%
SALE
DN
06
08
10
12
Size
04
05
06
08
Inch
1/4
5/16
3/8
1/2
Outer Ø [mm]
13,4
15,2
17,4
20,7
Inner Ø [mm]
6,0
8,0
10
12
bending radius [mm]
75
85
90
130
working pressure [bar]
400
350
330
275
burst pressure [bar]
1600
1400
1320
1100
Safety factor
4:1
4:1
4:1
4:1
Standard ferrule
Weight [kg]
0,28
0,34
0,41
0,56
Quantity


Product info

  • Specifications
    Color cover: black
    Color inner tube: black
    Cover: Synthetic rubber, wear resistant, black, smooth
    Inner tube: Synthetic rubber, black
    Media: water and water-based media up to + 70 ° C; Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions
    Norm/Standards: EN 857 - 2SC
    Reinforcement: high tensile steel wire braid
    Temperature range [°C]: - 40 ° C to + 100 ° C, water and water-based media up to + 70 ° C
    application: High-pressure applications
    max operating temperature [°C]: +100°C
    number of layers: 2

Benefit

Even better bend radius and more compact than the 2SN hose. Compact alternative to 2SN.

Accessories

For special applications with difficult conditions skiving-ferrules are available. For details, please refer to our current crimping-charts.

Practical tip

Hose lines must not be made of tubes that were already part of a hose line in use previously.
