Product info
-
Specifications

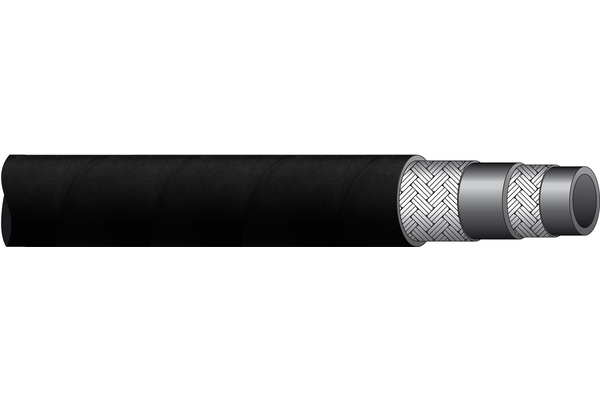

DN: 10 Size: 06 Inch: 3/8 Outer Ø [mm]: 18,5 Inner Ø [mm]: 9,5 bending radius [mm]: 70 working pressure [bar]: 110 burst pressure [bar]: 500 Safety factor: 4:1 Standard ferrule: XVTE06 Weight [kg]: 0,245 Static test pressure [bar]: 220 Color cover: black Color inner tube: black Cover: Synthetic rubber, wear resistant Inner tube: Synthetic rubber MSHA-Approval: no Media: water and water-based media up to + 70 ° C; Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions Norm/Standards: EN 854 - 3 TE Reinforcement: Textile braid, double layer Temperature range [°C]: - 40 ° C to + 100 ° C max operating temperature [°C]: +100°C number of layers: 2
