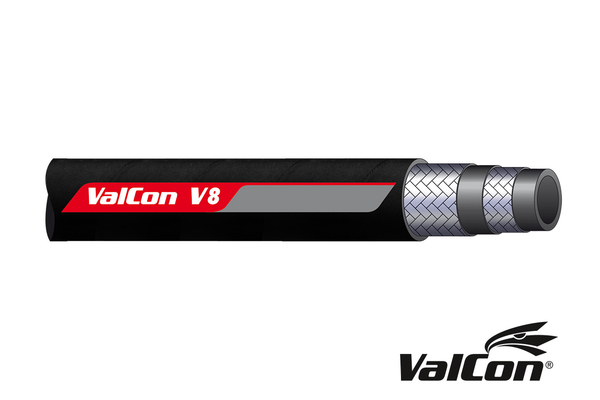

Valcon® Braided Hose V8-2SC

Hydraulic hose for high pressure applications, according to EN 857 - 2SC

To accessories

Detail

Art. No.

V8-2SC06

V8-2SC08

V8-2SC10

V8-2SC12

V8-2SC16

V8-2SC20

V8-2SC25

Size

Inch

1/4

5/16

3/8

1/2

5/8

3/4

Outer Ø [mm]

max. 14,2

max. 16,0

max. 18,3

max. 21,5

max. 24,7

max. 28,6

max. 36,6

bending radius [mm]

130

170

200

250

working pressure [bar]

400

350

330

275

250

215

165

burst pressure [bar]

1600

1400

1320

1100

1000

860

660

Safety factor

4:1

Standard ferrule

VC2-04

VC2-05

VC2-06

VC2-08

VC2-10

VC2-12

VC2-16

Static test pressure [bar]

800

700

660

550

500

430

330

Outer Ø max. [mm]

14,2

16,0

18,3

21,5

24,7

28,6

36,6

Quantity

Product info

Specifications

Color cover:	black
Color inner tube:	black
Cover:	Synthetic rubber, wear resistant
Inner tube:	Synthetic rubber
MSHA-Approval:	no
Media:	Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions
Norm/Standards:	EN 857 - 2SC
Reinforcement:	High tensile steel wire braid
Temperature range [°C]:	- 40 ° C to + 100 ° C, water and water-based media up to + 70 ° C
application:	high pressure applications
max operating temperature [°C]:	+100°C
number of layers:	2
