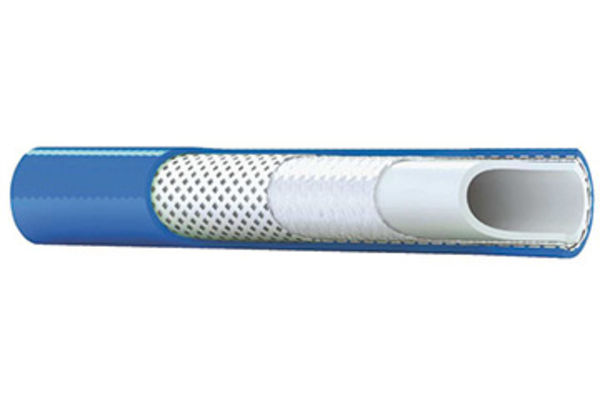

Thermoplastic Sewer Cleaning Hose S-TP19KS

Similar image

With AGR / DKR standard connections. Other connections on request.

To accessories

Detail

Art. No.
S-TP19KS12-40M
%
SALE
S-TP19KS12-80M
%
SALE
S-TP19KS12-100M
%
SALE
S-TP19KS12-120M
%
SALE
S-TP19KS20-40M
%
SALE
S-TP19KS20-80M
%
SALE
S-TP19KS20-100M
%
SALE
S-TP19KS12-150M
%
SALE
S-TP19KS20-120M
%
SALE
S-TP19KS20-150M
%
SALE
S-TP19KS25-40M
%
SALE
S-TP19KS25-80M
%
SALE
S-TP19KS25-100M
%
SALE
S-TP19KS25-120M
%
SALE
S-TP19KS25-150M
%
SALE
S-TP19KS32-80M
%
SALE
S-TP19KS32-40M
%
SALE
S-TP19KS32-100M
%
SALE
S-TP19KS32-120M
%
SALE
S-TP19KS32-150M
%
SALE
DN
12
12
12
12
20
20
20
12
20
20
25
25
25
25
25
32
32
32
32
32
Size
8
8
8
8
12
12
12
8
12
12
16
16
16
16
16
20
20
20
20
20
Inch
1/2
1/2
1/2
1/2
3/4
3/4
3/4
1/2
3/4
3/4
1
1
1
1
1
1.1/4
1.1/4
1.1/4
1.1/4
1.1/4
Inner Ø [mm]
13,00
13,00
13,00
13,00
19,6
19,60
19,60
13,00
19,60
19,60
25,60
25,60
25,60
25,60
25,60
32,40
32,40
32,40
32,40
32,40
bending radius [mm]
75
75
75
75
120
120
120
75
120
120
155
155
155
155
155
240
240
240
240
240
working pressure [bar]
200
200
200
200
200
200
200
200
200
200
200
200
200
200
200
200
200
200
200
200
burst pressure [bar]
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
Safety factor
2,5:1
2,5:1
2,5:1
2,5:1
2,5:1
2,5:1
2,5:1
2,5:1
2,5:1
2,5:1
2,5:1
2,5:1
2,5:1
2,5:1
2,5:1
2,5:1
2,5:1
2,5:1
2,5:1
2,5:1
hose length [m]
40
80
100
120
40
80
100
150
120
150
40
80
100
120
150
80
40
100
120
150
Quantity


Product info

  • Specifications
    Color cover: blau
    Color inner tube: white
    Cover: Polyurethan
    Inner tube: Seamless extruded polyester tube (PEL)
    MSHA-Approval: no
    Media: Water
    Reinforcement: 2 layers of synthetic fiber braid
    Temperature range [°C]: - 40 °C up to + 60 °C
    application: Sewer-Cleaning
    connections: AGR/DKR
    max operating temperature [°C]: +60°C
    number of layers: 2

Benefit

Other lengths available on request

Accessories

Swivel joints, especially for water applications
