S-TP21KS32-40M

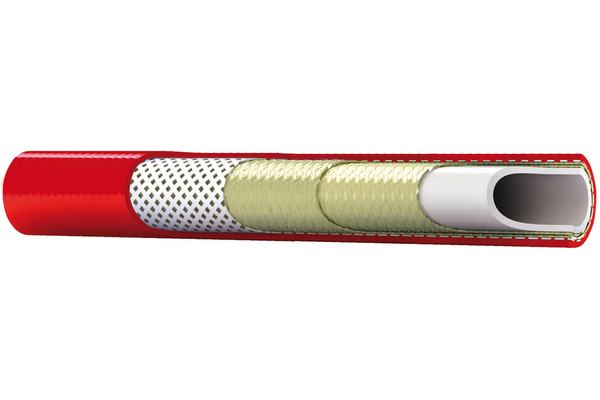

Thermoplastic sewer cleaning hose S-TP21KS

Product info

• Specifications

  DN:	32
  Size:	20
  Inch:	1.1/4
  Outer Ø [mm]:	49,6
  Inner Ø [mm]:	32,4
  bending radius [mm]:	240
  working pressure [bar]:	250
  burst pressure [bar]:	625
  Safety factor:	2,5:1
  hose length [m]:	40
  Color cover:	red
  Color inner tube:	white
  Cover:	Polyurethan
  Inner tube:	Seamless extruded polyester tube (PEL)
  MSHA-Approval:	no
  Media:	Water
  Reinforcement:	One or two braids of aramid or synthetic fiber plus one special extra braid of synthetic fiber for cover integration
  Temperature range [°C]:	- 40 °C up to + 60 °C
  application:	Sewer-Cleaning
  connections:	AGR/DKR
  max operating temperature [°C]:	+60°C
  number of layers:	2 or 3
