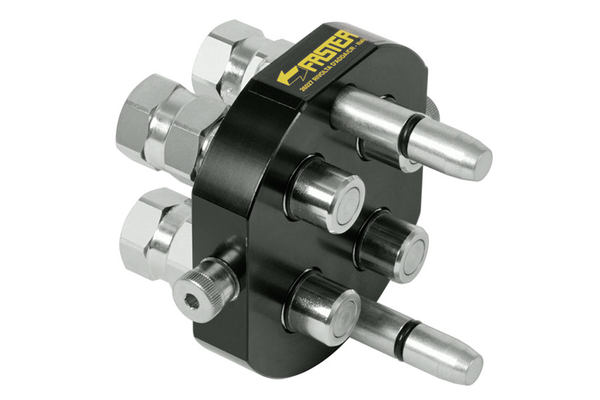

MST5-4H18CEL12-12S
Multi coupling series MST5 DN12 Cr III (male)

Product info

• Technical data

  DN:	12
  Size:	08
  Working pressure [bar]:	250
  Thread + standard:	CE male thread light Seriess, DIN 3861
  Thread [GA]:	M18X1,5
  Pipe Ø R [mm]:	12L
  Number of hydraulic inserts:	4
  Series:	2P
  Manufacturer ID number:	2P508-4-2/18M C
  max. number of electronic plugs:	2
  max. number of hydraulic plugs:	4
  l/min at ΔP=2 bar:	DN 12: 70l/min
  Applications:	industry, agricultural technology , power units, construction machines
  Designation:	male
  Female or male coupling:	plug
  Material:	Aluminum & Steel
  Material sealing:	NBR & PUR
  Note:	Multi coupling, Flat Face, few leakage oil, allows the connection of several hydraulic lines simultaneously. Connection allowed up to 60bar residual pressure (2P) and full working pressure in the 3P version.
  Product title long:	Series MST5 DN12.
  Product title short:	male coupling
  Surface:	MATE 500 (CrIII) & Paint
  Temperature range [°C]:	-25°C /+100°C
