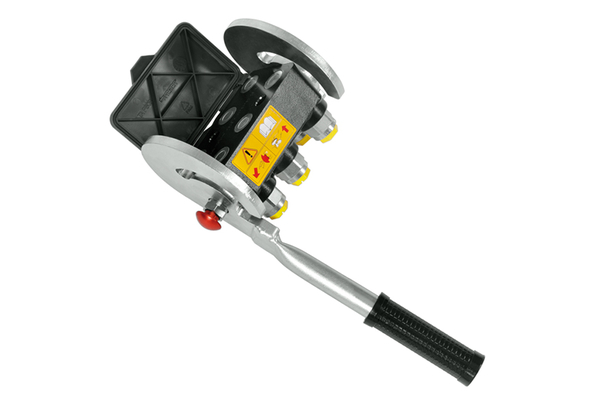

MST6-3P-6-08BSP-12M
Multi coupling series MST6 DN12 Cr III (female)

Product info

• Specifications

  DN:	12
  Size:	08
  working pressure [bar]:	250
  Thread + standard:	ISO 1179-1
  Thread [GA]:	BSPP 1/2" FEMALE
  Number of hydraulic inserts:	6
  Series:	3P
  Manufacturer ID number:	3P608-6-12G F C
  max. number of hydraulic plugs:	6
  l/min at ΔP=2 bar:	DN12: 70 l/min
  Designation:	female
  Female or male coupling:	sleeve
  Product title long:	Series MST6 DN12
  Product title short:	female coupling
  Surface:	MATE 500 (CrIII) & Paint
