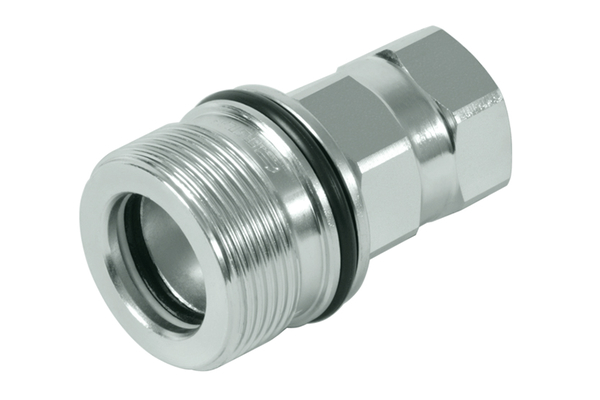

Faster CVC female coupling

The VSV series quick couplings are suitable for various applications with high pressures, flow peaks and the ability to connect when there is residual pressure in the line. Interchangeable according to ISO 14541, characterized by a sealing system with a cone valve and sleeve with a screw connection.

To accessories

Detail

Art. No.

Size

Inch

1/2

Working pressure [bar]

350

340

Thread + standard

Metric male-thread ISO 8434-1-L

BSP female DIN 3852

BSP female DIN 3852, with O-Ring Port

02/ METRIC - ISO 8434-1-L

metric female thread DIN 3852

Thread [GA]

M30x2

1/2

M22x1,5

M18x1,5 MALE 12L

M30x1,5

Pipe Ø R [mm]

22L

Outer Ø sleeve [mm]

48,0

35,0

54,0

Connection thread

48X3

Rd35x2

Rd54x3

Length sleeve [mm]

89,0

60,9

97,1

Wrench size connection side sleeve

SW1 [mm]

Can be coupled under pressure

Allowed under residual pressure

SW1 [mm]

l/min at ΔP=2 bar

205

160

Quantity

Product info

Technical data

Applications:	Construction Equipment, Vehicles & Road Machines, Agriculture
Female or male coupling:	Female
Material Casing:	Steel
Material sealing:	DN 06-10: NBR , DN 12-38: FKM (Viton(R))
Material support ring:	PTFE
Resistance against red rust [h]:	500
Standard:	ISO 14541
Surface:	MATE 500 (CrIII)
Temperature range [°C]:	FKM: -25 °C up to +200 °C , NBR: -25 °C up to + 125 °C
