SK-VV06BSP10S
STSK-VV plug

Product info

• Technical data

  Size:	2
  DN:	10
  Size:	06
  Inch:	3/8
  working pressure [bar]:	300
  Thread + standard:	BSP female DIN 3852
  Thread [GA]:	3/8

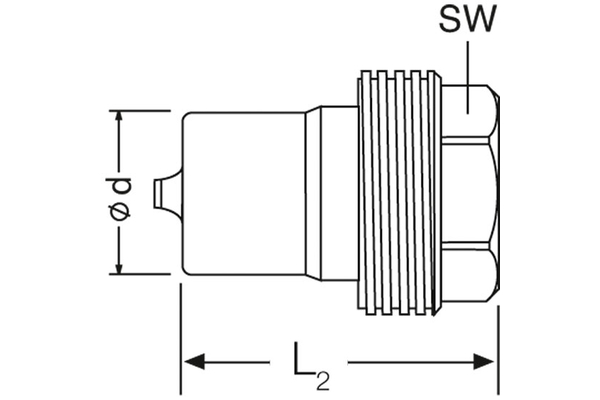

  Outer Ø plug [mm]:	18,9
  Length plug [mm]:	41,0
  Wrench size connection side plug:	24
  burst pressure plug uncoupled [bar]:	1200
  SW1 [mm]:	24
  burst pressure coupled [bar]:	1500
  burst pressure sleeve uncoupled [bar]:	1200
  l/min at ΔP=2 bar:	30
  L1 [mm]:	B+C -12
  Material:	C-steel, nitrified
  Material support ring:	PTFE
  Product title long:	Series SK-VV male coupling.
  Product title short:	male coupling
