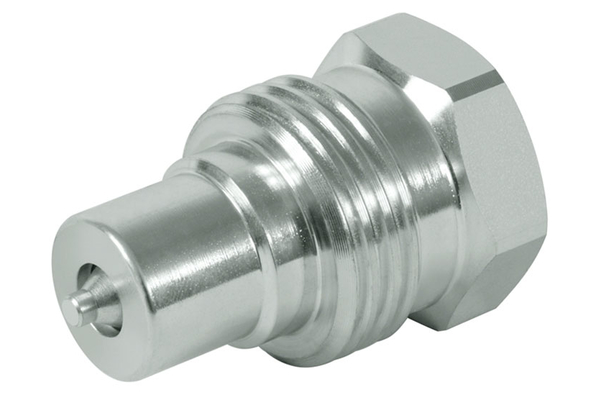

Faster VVS male coupling

Similar image

Screw-on couplings commonly used for applications characterized by very high working pressures and peaks. Heavy duty internal components guarantee the maximum safety and reliability. Faster proprietary profile. Interchangeable with Faster VV series.

To accessories

Detail

Art. No.
SK-VVS04BSP06S
%
SALE
SK-VVS06BSP10S
%
SALE
SK-VVS08BSP12S
%
SALE
SK-VVS06NPT10S
%
SALE
Size
1
2
3
2
DN
06
10
12
10
Size
04
06
08
06
Inch
1/4
3/8
1/2
3/8
working pressure [bar]
800
800
730
800
Thread + standard
BSP female DIN 3852
BSP female DIN 3852
BSP female DIN 3852
NPT female thread DIN 3852
Thread [GA]
1/4
3/8
1/2
3/8
Outer Ø plug [mm]
14,1
18,9
20,5
18,9
Length plug [mm]
43,0
48,0
53,0
48,0
Wrench size connection side plug
25
32
34
32
burst pressure plug uncoupled [bar]
2400
3400
2200
burst pressure coupled [bar]
2500
2400
2200
burst pressure sleeve uncoupled [bar]
2400
3500
2200
SW1 [mm]
25
l/min at ΔP=2 bar
8
18
30
18
L1 [mm]
B+C -27
B+C -34
B+C -38
Quantity


Product info

Benefit

Working pressure up to 800bar, even with a safety factor of 3.

Accessories

dust protection

Practical tip

For the high-pressure range, the SK-PVV series can also be used in many applications.
