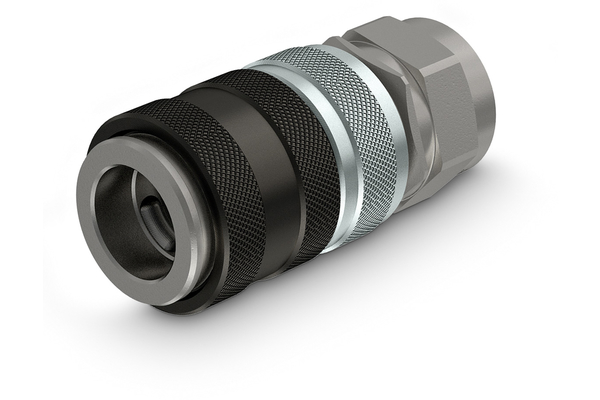

UHP150 female coupling

Similar image
Similar image

UHP couplings are the most advanced Faster solution for hydraulic applications with ultra high working pressures of 150 MPa and more. Extremely robust and operationally safe. They are characterized by numerous visual and mechanical safety systems.

To accessories

Detail

Art. No.
UHP150 14NPT F
%
SALE
UHP150 14GMS F
%
SALE
DN
06
06
Size
04
04
Inch
1/4
1/4
working pressure [bar]
1500
1500
Thread + standard
NPT female ANSI B1.20.3
BSP female-thread (metal sealing) ISO 1179-1
Thread [GA]
1/4
1/4

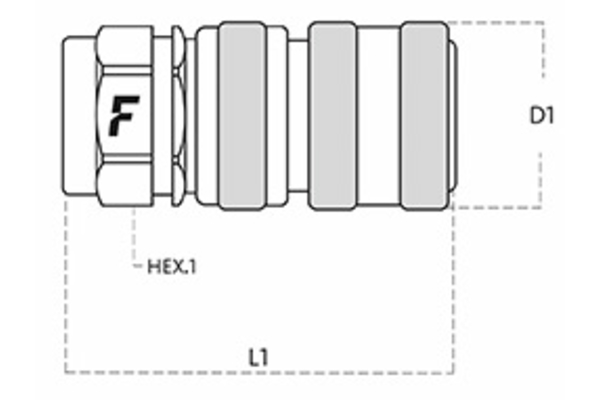

Outer Ø sleeve [mm]
28,0
28,0
Length sleeve [mm]
59,3
62,3
SW [mm]
24
24
SW1 [mm]
24
24
l/min at ΔP=2 bar
4
4
Quantity
