Art. No.: SK-CVC14UNF12S
List number: 23587030

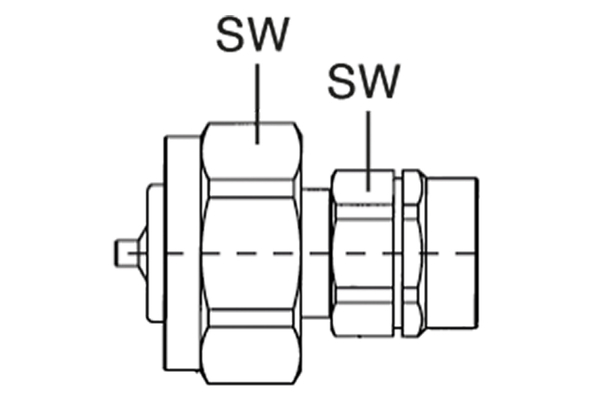

Screw-on couplings purposely designed for Caterpillar machines. Connectable under residual pressure. High resistance to pressure and flow impulses. Equipped with a hexagon-shaped sleeve and an external o-ring ensuring high friction and low risk of accidental disconnection due to vibrations.
| DN: | 12 |
| Size: | 08 |
| Inch: | 1/2 |
| Working pressure [bar]: | 340 |
| Thread + standard: | 0/ SAE ISO 11926-1 |
| Thread [GA]: | 7/8"-14 UNF FEMALE ORB |
| Outer Ø plug [mm]: | 45 |
| Length plug [mm]: | 63 |
| SW2 [mm]: | 41 |
| SW1 [mm]: | 30 |
| SW1 [mm]: | 30 |
| l/min at ΔP=2 bar: | 50 |
| Material support ring: | PTFE |
| Product title long: | . Series SK-CVC male coupling |
| Product title short: | male coupling |
Reserve technical changes.
