SK-CVC19UNF25S
SK-CVC plug

Product info

• Technical data

  DN:	25
  Size:	16
  Inch:	1
  working pressure [bar]:	340
  Thread + standard:	0/SAE ISO 11926-1
  Thread [GA]:	1-3/16"-12 UN FEMALE ORB
  Outer Ø plug [mm]:	72
  Length plug [mm]:	90

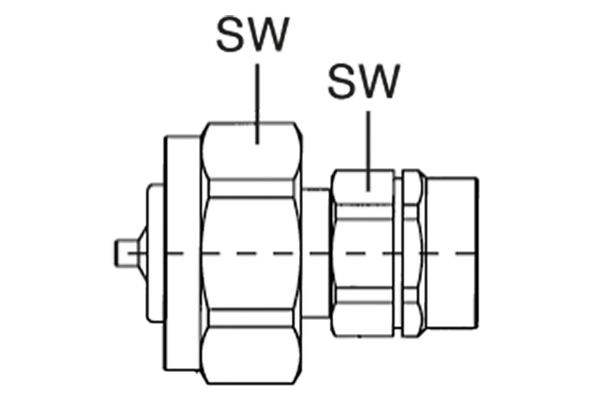

  SW1 [mm]:	42
  l/min at ΔP=2 bar:	160
  Material support ring:	PTFE
  Product title long:	. Series SK-CVC male coupling
  Product title short:	male coupling
